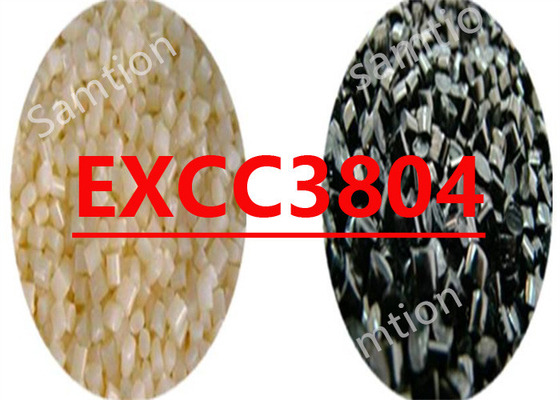

S-Plastics Cycolac EXCC3804 resin is High flow, UL V-0, high gloss molding grade Cycolac
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 44 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 37 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.9 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 40 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2700 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 79 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2800 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 48 | MPa | ISO 527 |
| Tensile Strain, break, 50 mm/min | 35 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2850 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 73 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2600 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 120 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 79 | °C | ASTM D 648 |
| Vicat Softening Temp, Rate B/50 | 96 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 80 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.16 | - | ASTM D 792 |
| Density | 1.15 | g/cm³ | ISO 1183 |
| Melt Flow Rate, 220°C/5.0 kg | 13 | g/10 min | ISO 1133 |
| Source GMD, last updated:2009/10/22 | |||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 205 - 245 | °C |
| Nozzle Temperature | 205 - 245 | °C |
| Front - Zone 3 Temperature | 205 - 225 | °C |
| Middle - Zone 2 Temperature | 200 - 215 | °C |
| Rear - Zone 1 Temperature | 170 - 180 | °C |
| Mold Temperature | 50 - 60 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:2009/10/22 | ||
