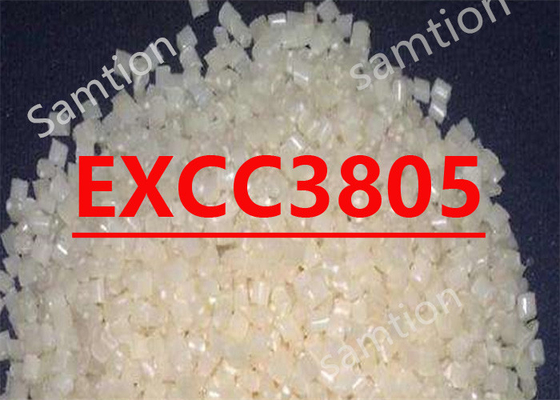

S-Plastics Cycolac EXCC3805 resin is …ABS plating grade optimized for a broad processing window for both painted and plated applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 37 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2830 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 90 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2810 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 46 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 35 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.6 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 42.3 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2780 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 74 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2350 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 345 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 88 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 37 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 27 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 6.E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 6.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 96 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 81 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.05 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm (5) | 0.4 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 20.6 | g/10 min | ASTM D 1238 |
| Density | 1.04 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2009/12/17 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 255 - 280 | °C |
| Nozzle Temperature | 255 - 280 | °C |
| Front - Zone 3 Temperature | 250 - 270 | °C |
| Middle - Zone 2 Temperature | 230 - 245 | °C |
| Rear - Zone 1 Temperature | 215 - 230 | °C |
| Mold Temperature | 40 - 80 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:2009/12/17 | ||
