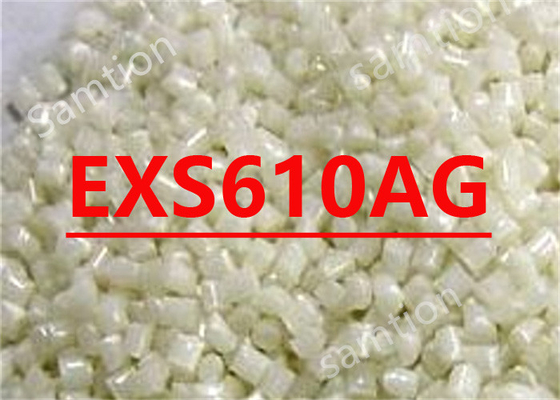

S-Plastics Cycolac EXS610AG resinis the experimental name of the general purpose CYCOLAC Alliage effect. Alliage simulates a 3D aesthetic effect,
which is suitable for applications in domestic appliances, business and office equipments. EXS610AG will be commercialized as
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 52 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 48 | MPa | ISO 527 |
| Tensile Stress, yield, 50 mm/min | 57 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 55 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.6 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 3.4 | % | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 2.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 3.5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3200 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 82 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2900 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 15 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | 15 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 5 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 102 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 104 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 100 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 88 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.08 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 16 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:11/26/2002 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.1 | % |
| Melt Temperature | 220 - 260 | °C |
| Nozzle Temperature | 210 - 250 | °C |
| Front - Zone 3 Temperature | 220 - 260 | °C |
| Middle - Zone 2 Temperature | 220 - 260 | °C |
| Rear - Zone 1 Temperature | 200 - 240 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 40 - 80 | °C |
| Source GMD, last updated:11/26/2002 | ||
With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!
|
For more information please download the datasheet |
|
|
S-Plastics Cycolac EXS610AG.pdf |
|
