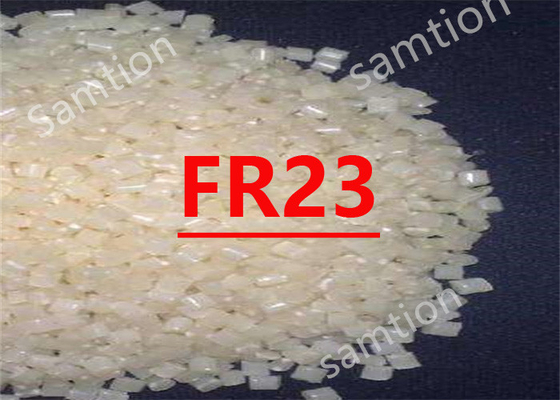

S-Plastics Cycolac FR23 resin is Flame retardant ABS (non-PBBE additives). Good properties/toughness. Excellent moldability. UL94 V-0 rated.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 42 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.1 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 11 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2410 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 73 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2720 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 267 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 41 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 90 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 83 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 72 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.92E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.92E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.17 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 6.8 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 200°C, 1000 sec-1 | 3100 | poise | ASTM D 3825 |
| Melt Flow Rate, 220°C/5.0 kg | 9 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 37 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 2.31 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2.48 | mm | UL 94 |
| Source GMD, last updated:05/09/2002 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 6 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Nozzle Temperature | 200 - 220 | °C |
| Front - Zone 3 Temperature | 200 - 215 | °C |
| Middle - Zone 2 Temperature | 195 - 205 | °C |
| Rear - Zone 1 Temperature | 170 - 180 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:05/09/2002 | ||
