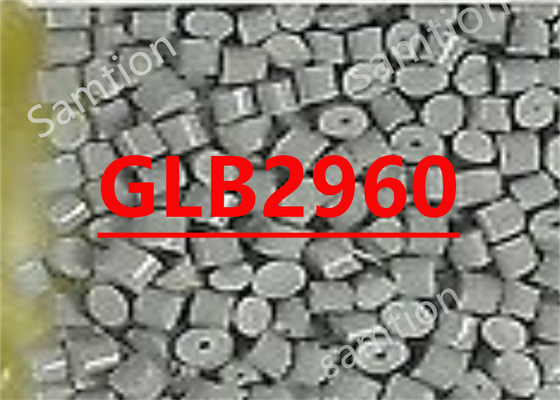

S-Plastics Cycolac GLB2960 resin is Blowmoldable. Medium flow, super high impact, excellent melt strength and regrind stability. High level of toughness at reduced temperatures.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 33 | MPa | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1650 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 56 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1650 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 92 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 459 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 240 | J/m | ASTM D 256 |
| Falling Dart Impact, 23°C | 51 | J | S-Plastics Method |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 92 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.08E-04 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.02 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 2.7 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 232°C, 100 sec-1 | 19700 | poise | ASTM D 3825 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2.48 | mm | UL 94 |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Extrusion Blow Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 5 - 4 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 - 0.04 | % |
| Minimum Moisture Content | 0.04 | % |
| Melt Temperature (Parison) | 210 - 225 | °C |
| Barrel - Zone 1 Temperature | 190 - 220 | °C |
| Barrel - Zone 2 Temperature | 190 - 220 | °C |
| Barrel - Zone 3 Temperature | 190 - 220 | °C |
| Barrel - Zone 4 Temperature | 190 - 220 | °C |
| Adapter - Zone 5 Temperature | 195 - 220 | °C |
| Head - Zone 6 - Top Temperature | 195 - 220 | °C |
| Head - Zone 7 - Bottom Temperature | 195 - 220 | °C |
| Screw Speed | 20 - 60 | rpm |
| Extruder Feed Zone Temperature | 60 - 80 | °C |
| Mold Temperature | 40 - 90 | °C |
| Die Temperature | 195 - 220 | °C |
| Source GMD, last updated:12/29/1999 | ||
