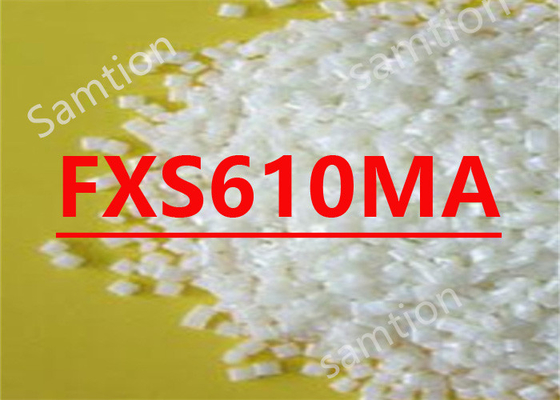

S-Plastics Cycolac FXS610MA resin isGeneral purpose ABS with Visual Effects pigment. Color package may affect properties/performance.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 37 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 15 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2960 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 79 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2750 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 133 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 16 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 100 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 93 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.2E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.2E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.08 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 8 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:05/16/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 220 - 260 | °C |
| Nozzle Temperature | 220 - 260 | °C |
| Front - Zone 3 Temperature | 215 - 255 | °C |
| Middle - Zone 2 Temperature | 215 - 255 | °C |
| Rear - Zone 1 Temperature | 200 - 250 | °C |
| Mold Temperature | 40 - 75 | °C |
| Back Pressure | 0.5 - 0.9 | MPa |
| Screw Speed | 50 - 100 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:05/16/2001 | ||
