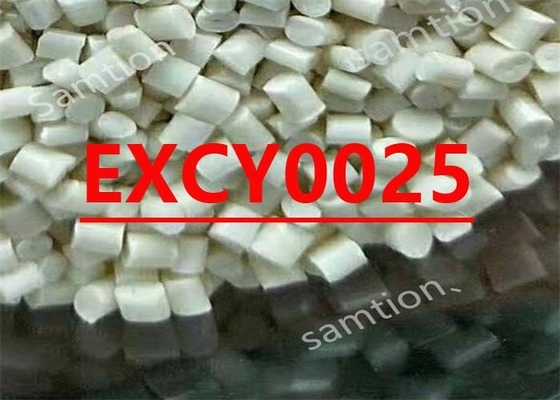

S-Plastics Cycoloy EXCY0025 resin is Recyle Material with PC+ABS+EXL recycle for good low temperature impact performance.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 45 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 44 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 90 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2170 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2020 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 44 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 100 | % | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 71 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 690 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 530 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 45 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -30°C | 45 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -40°C | 47 | J | ASTM D 3673 |
| Izod Impact, notched 80*10*4 +23°C | 47 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 41 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 55 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 44 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 119 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 98 | °C | ASTM D 648 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 120 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 100 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.13 | - | ASTM D 792 |
| Melt Flow Rate, 260°C/5.0 kgf | 9 | g/10 min | ASTM D 1238 |
| Density | 1.13 | g/cm³ | ISO 1183 |
| Source GMD, last updated:08/05/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 105 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 275 - 300 | °C |
| Nozzle Temperature | 275 - 300 | °C |
| Front - Zone 3 Temperature | 260 - 300 | °C |
| Middle - Zone 2 Temperature | 255 - 295 | °C |
| Rear - Zone 1 Temperature | 250 - 290 | °C |
| Mold Temperature | 60 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:08/05/2004 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics cycoloy EXCY0025.pdf |
|
