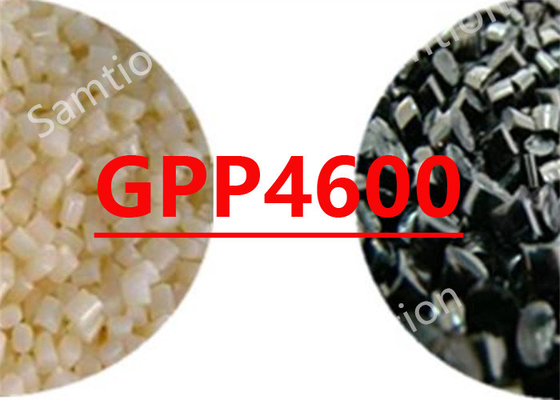

S-Plastics Cycolac GPP4600 resin is Extrusion profile grade for coextrusion. Recommended for substrate only.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 50 | MPa | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2620 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 81 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2680 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 110 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 320 | J/m | ASTM D 256 |
| Falling Dart Imp, 23°C 3.2 mm extr sheet | 40 | J | S-Plastics Method |
| Gardner Impact (Procedure B) | 16013 | J/m | ASTM D 4226 |
| Instrumented Impact Total Energy, 23°C | 50 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, annealed | 100 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 100 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 91 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.02E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 60°C, xflow | 7.02E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.05 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| OPTICAL | Value | Unit | Standard |
| Gloss, untextured, 60 deg (sheet) | 97 | - | ASTM D 523 |
| Source GMD, last updated:02/18/1999 | |||
| THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES. | |||
| PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION | |||
| (1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded samples. All samples tested under ISO test standards are prepared according to ISO 294. |
|||
| (2) Only typical data for selection purposes. Not to be used for part or tool design. | |||
| (3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions. | |||
| (4) Internal measurements according to UL standards. | |||
With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!
|
For more information please download the datasheet |
|
|
S-Plastics Cycolac GPP4600.pdf |
|
