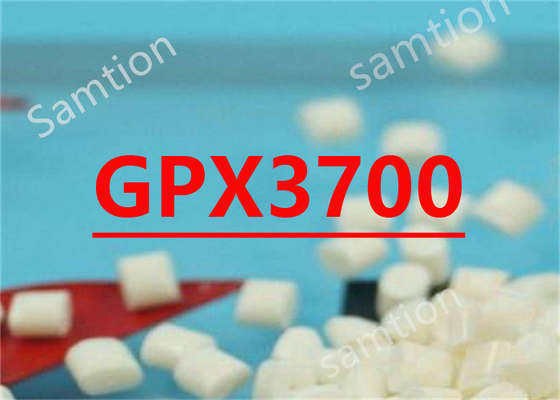

S-Plastics Cycolac GPX3700 resin is Extrusion grade. High flow, medium impact. Excellent processability/good sheet aesthetics. Good in applications utilizing color concentrates.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 42 | MPa | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2130 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 105 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 411 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 144 | J/m | ASTM D 256 |
| Falling Dart Imp, 23°C 3.2 mm extr sheet | 44 | J | S-Plastics Method |
| Falling Dart Imp, -40°C 3.2 mm extr sheet | 16 | J | S-Plastics Method |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 95 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 7.38E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.04 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 1.2 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 232°C, 100 sec-1 | 16000 | poise | ASTM D 3825 |
| OPTICAL | Value | Unit | Standard |
| Gloss, untextured, 60 deg (sheet) | 97 | - | ASTM D 523 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:12/29/1999 | |||
| • Recommend initial lower temperatures settings to avoid material degradation/hang-up in die. | ||
| Parameter | ||
| Sheet Extrusion | Value | Unit |
| Drying Temperature | 80 - 95 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0 - 0.02 | % |
| Melt Temperature | 215 - 260 | °C |
| Barrel - Zone 1 Temperature | 170 - 200 | °C |
| Barrel - Zone 2 Temperature | 180 - 220 | °C |
| Barrel - Zone 3 Temperature | 190 - 225 | °C |
| Barrel - Zone 4 Temperature | 200 - 240 | °C |
| Adapter Temperature | 205 - 250 | °C |
| Die Temperature | 205 - 250 | °C |
| Roll Stack Temp - Top | 90 - 95 | °C |
| Roll Stack Temp - Middle | 95 - 105 | °C |
| Roll Stack Temp - Bottom | 100 - 105 | °C |
| Source GMD, last updated:12/29/1999 | ||
