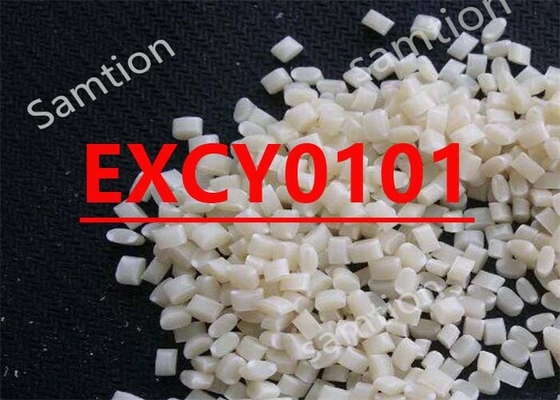

S-Plastics Cycoloy EXCY0101 resin is High flow, flame retardant PC/ABS with non-brominated and non-chlorinated FR systems intended for thin wall applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 68 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 45 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 40 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3200 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 105 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3020 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 67 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 43 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3.4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 100 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3000 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 100 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2720 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 85 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*4 +23°C | 10 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 20 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 91 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 86 | °C | ASTM D 648 |
| Vicat Softening Temp, Rate B/50 | 90 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 93 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 76 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.18 | - | ASTM D 792 |
| Melt Flow Rate, 260°C/2.16 kgf | 20 | g/10 min | ASTM D 1238 |
| Density | 1.18 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 260°C/2.16 kg | 20 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.5 | mm | UL 94 by GE |
| Source GMD, last updated:12/15/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 80 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 230 - 265 | °C |
| Nozzle Temperature | 230 - 265 | °C |
| Front - Zone 3 Temperature | 230 - 265 | °C |
| Middle - Zone 2 Temperature | 225 - 260 | °C |
| Rear - Zone 1 Temperature | 220 - 250 | °C |
| Mold Temperature | 60 - 80 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:12/15/2004 | ||
|
