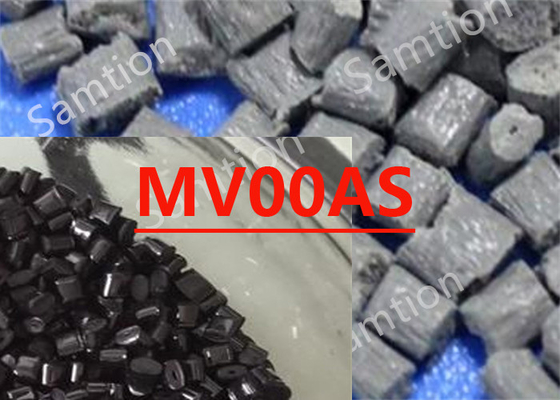

S-Plastics Verton MV00AS resin is a compound based on Polypropylene resin containing Long Glass. Added features of this material include:
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 131 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10440 | MPa | ASTM D 638 |
| Flexural Stress | 187 | MPa | ASTM D 790 |
| Flexural Modulus | 9340 | MPa | ASTM D 790 |
| Tensile Stress, break | 141 | MPa | ISO 527 |
| Tensile Strain, break | 1.7 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 13870 | MPa | ISO 527 |
| Flexural Stress | 214 | MPa | ISO 178 |
| Flexural Modulus | 11140 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 208 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 13 | J | ASTM D 3763 |
| Multiaxial Impact | 13 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 66 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 29 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 157 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 3.36E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 4.57E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 3.37E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 4.58E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 164 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 160 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.33 | g/cm³ | ASTM D 792 |
| Wear Factor Washer | 73 | 10^-10 in^5-min/ft-lb-hr | ASTM D 3702 Modified |
| Dynamic COF | 0.34 | - | ASTM D 3702 Modified |
| Static COF | 0.52 | - | ASTM D 3702 Modified |
| Density | 1.33 | g/cm³ | ISO 1183 |
| Source GMD, last updated:10/02/2004 | |||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 220 - 250 | °C |
| Front - Zone 3 Temperature | 250 - 260 | °C |
| Middle - Zone 2 Temperature | 245 - 255 | °C |
| Rear - Zone 1 Temperature | 230 - 245 | °C |
| Mold Temperature | 40 - 65 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
