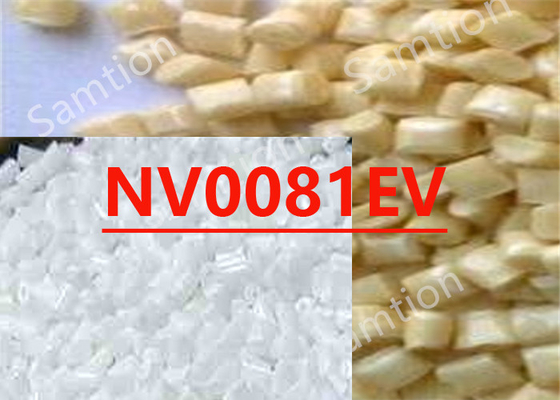

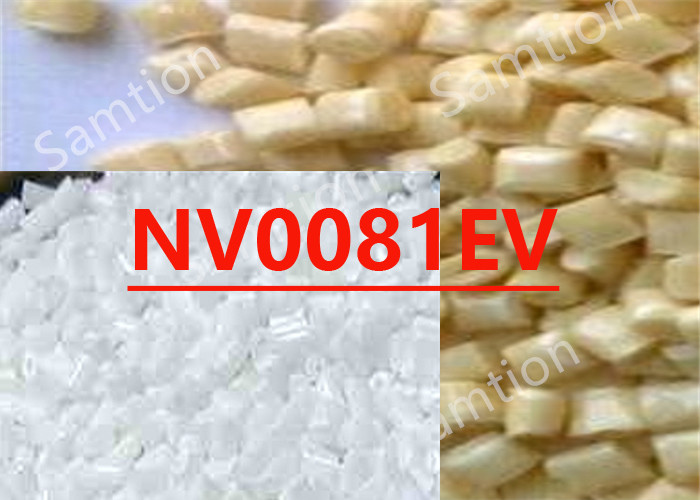

S-Plastics Verton NV0081EV resin isPC+ABS, Long Glass Fiber, Flame retardant,
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 121 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 121 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 14760 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 172 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 12500 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 120 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 120 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10400 | MPa | ISO 527 |
| Flexural Modulus, 2 mm/min | 12700 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 393 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 294 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*4 +23°C | 30 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 104 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 91 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 92 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.52 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.04 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.16 - 0.18 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.35 - 0.37 | % | ASTM D 955 |
| Density | 1.5 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.03 | % | ISO 62 |
| Source GMD, last updated:01/28/2008 | |||
| THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES. | |||
| PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION | |||
| (1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded |
|||
| samples. All samples tested under ISO test standards are prepared according to ISO 294. | |||
| (2) Only typical data for selection purposes. Not to be used for part or tool design. | |||
| (3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions. | |||
| (4) Internal measurements according to UL standards. | |||
