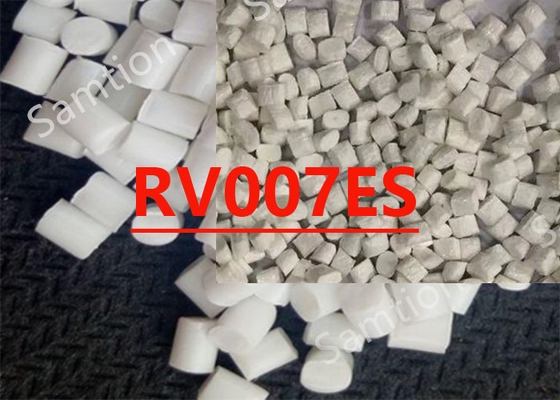

S-Plastics Verton RV007ES resin is a compound based on Nylon 66 resin containing Long Glass. Added features of this material include: Easy
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 204 | MPa | ASTM D 638 |
| Flexural Modulus | 9880 | MPa | ASTM D 790 |
| Tensile Stress, break | 214 | MPa | ISO 527 |
| Tensile Strain, break | 2.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 11970 | MPa | ISO 527 |
| Flexural Stress | 309 | MPa | ISO 178 |
| Flexural Modulus | 10240 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 277 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*4 +23°C | 29 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 25 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 245 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 252 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.42 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.97 | % | ASTM D 570 |
| Density | 1.42 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2009/09/02 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 290 - 305 | °C |
| Front - Zone 3 Temperature | 290 - 300 | °C |
| Middle - Zone 2 Temperature | 290 - 300 | °C |
| Rear - Zone 1 Temperature | 280 - 295 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2009/09/02 | ||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Verton RV007ES.pdf |
|
