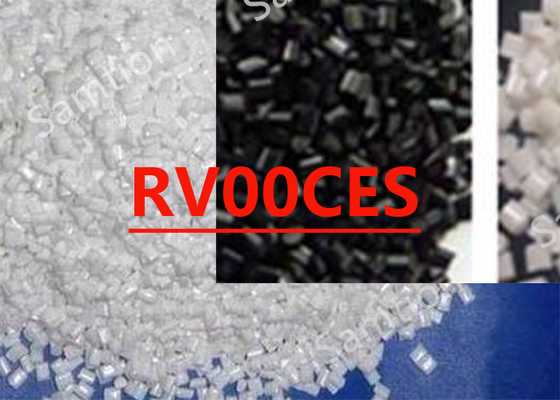

S-Plastics Verton RV00CES resin is a compound based on Nylon 66 resin containing Long Glass. Added features of this material include: Easy
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 270 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.6 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 19650 | MPa | ASTM D 638 |
| Flexural Stress | 430 | MPa | ASTM D 790 |
| Flexural Modulus | 18020 | MPa | ASTM D 790 |
| Tensile Stress, break | 261 | MPa | ISO 527 |
| Tensile Strain, break | 1.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 23280 | MPa | ISO 527 |
| Flexural Stress | 433 | MPa | ISO 178 |
| Flexural Modulus | 18920 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 411 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 18 | J | ASTM D 3763 |
| Multiaxial Impact | 18 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 102 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 54 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 43 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 247 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.76E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 5.36E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.7E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 5.3E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 252 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 252 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.71 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.44 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.2 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.4 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.2 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.4 | % | ISO 294 |
| Density | 1.71 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2010/06/30 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 290 - 305 | °C |
| Front - Zone 3 Temperature | 290 - 300 | °C |
| Middle - Zone 2 Temperature | 290 - 300 | °C |
| Rear - Zone 1 Temperature | 280 - 295 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2010/06/30 | ||
