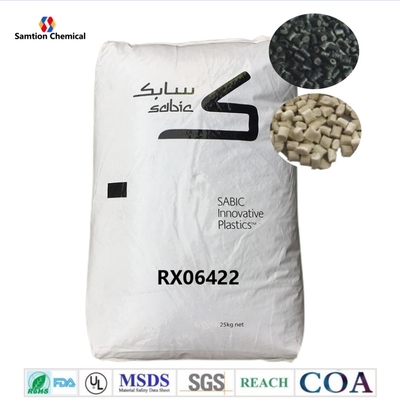

S-Plastics Verton RX06422 resin is a compound based on Nylon 66 resin containing Long Glass. Added features of this material include: Easy Molding.
Also known as: RF-700-10 EM HS UV
Product Reorder Name: RX06422
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 254 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.9 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 16890 | MPa | ASTM D 638 |
| Flexural Stress | 374 | MPa | ASTM D 790 |
| Flexural Modulus | 14160 | MPa | ASTM D 790 |
| Tensile Stress, break | 256 | MPa | ISO 527 |
| Tensile Strain, break | 1.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 18380 | MPa | ISO 527 |
| Flexural Stress | 370 | MPa | ISO 178 |
| Flexural Modulus | 15550 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 384 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 15 | J | ASTM D 3763 |
| Multiaxial Impact | 15 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 89 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 45 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 38 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 241 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.85E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 6.73E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.86E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 6.73E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 258 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 253 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.58 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.18 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.22 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.18 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.22 | % | ISO 294 |
| Density | 1.58 | g/cm³ | ISO 1183 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 290 - 305 | °C |
| Front - Zone 3 Temperature | 290 - 300 | °C |
| Middle - Zone 2 Temperature | 290 - 300 | °C |
| Rear - Zone 1 Temperature | 280 - 295 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!
1. Professional focus: professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2. Perfect service: we have served many high-quality and excellent enterprises at home and abroad, and are well aware of customers' purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting: the company has abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer's material supply chain.
4. Logistics distribution: we have long-term and stable logistics partners. According to the needs of customers, we formulate efficient distribution plans and deliver high-quality products to customers in time.
5. Speed advantage: all quotation inquiries will be replied within 24 hours, and the spot materials will be delivered within 48 hours
6. Small batch type selection technical support service: accept small batch orders of 5kg at least; The professional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations according to customer production and product requirements.
7. Quality assurance: our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach, FDA, EU, UL, COC / COA, etc.
|
For more information please download the datasheet |
|
|
S-Plastics Verton RX06422.pdf |
|
