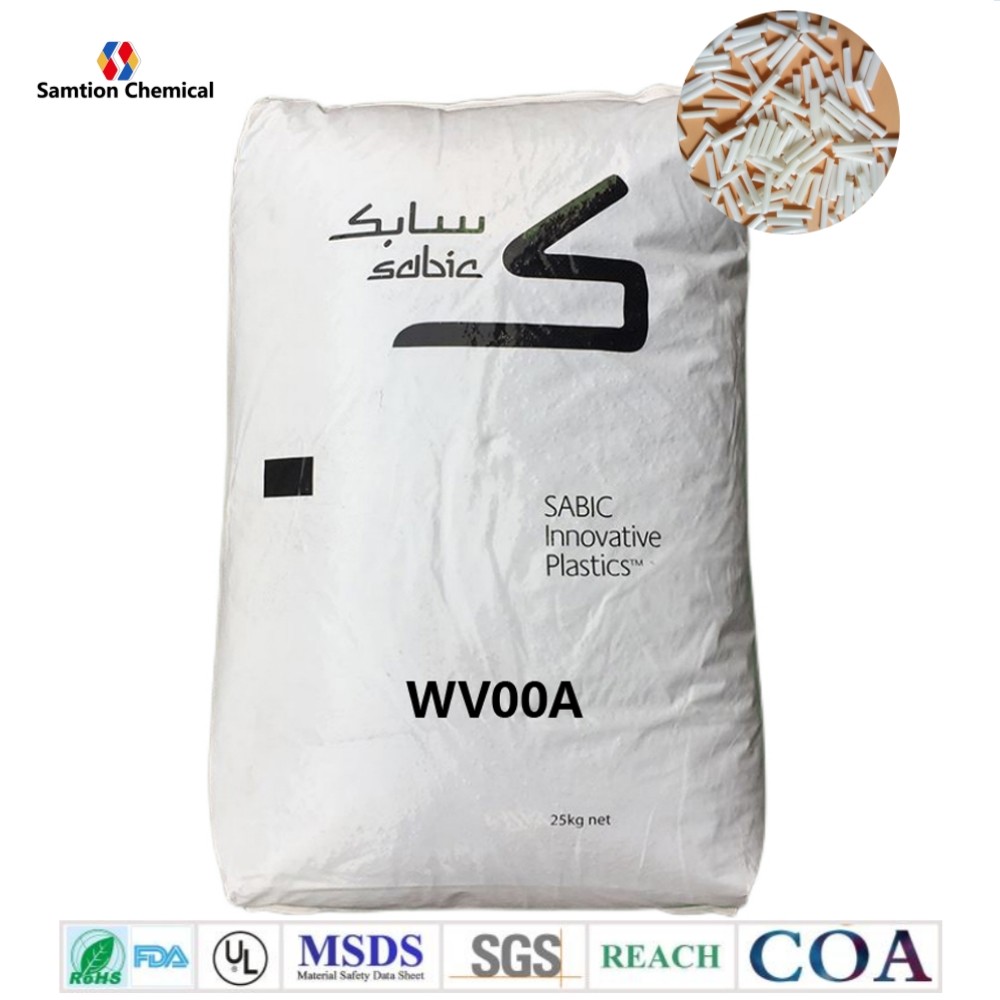

S-Plastics Verton WV00A resin is a compound based on Polybutylene Terephalate resin containing Long Glass.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 154 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.1 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 20240 | MPa | ASTM D 638 |
| Flexural Stress | 233 | MPa | ASTM D 790 |
| Flexural Modulus | 14400 | MPa | ASTM D 790 |
| Tensile Stress, break | 163 | MPa | ISO 527 |
| Tensile Strain, break | 1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 19770 | MPa | ISO 527 |
| Flexural Stress | 235 | MPa | ISO 178 |
| Flexural Modulus | 15670 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 831 | J/m | ASTM D 4812 |
| Instrumented Impact Energy @ peak, 23°C | 12 | J | ASTM D 3763 |
| Multiaxial Impact | 11 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 59 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 40 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 43 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 223 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.85E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 4.14E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.85E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 4.14E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 225 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.7 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.1 - 0.3 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.4 - 0.7 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.08 - 0.29 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.43 - 0.72 | % | ISO 294 |
| Density | 1.7 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.09 | % | ISO 62 |
| Source GMD, last updated:10/03/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 250 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 260 | °C |
| Middle - Zone 2 Temperature | 240 - 250 | °C |
| Rear - Zone 1 Temperature | 230 - 245 | °C |
| Mold Temperature | 65 - 120 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 70 | rpm |
| Source GMD, last updated:10/03/2004 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Verton WV00A.pdf |
|
