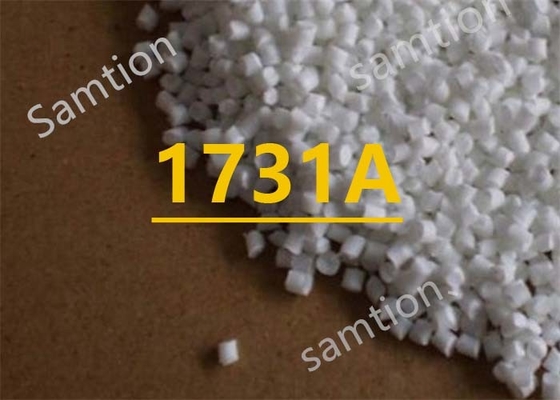

S-Plastics Xenoy 1731A resin is PBT+PC, Good Impact , Excellent physical property retention in automotive exteriors and OVAD.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5.6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 108 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 10 mm/min | 240 | % | S-Plastics - Japan Method |
| Tensile Modulus, 5 mm/min | 2370 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 93 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2120 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 60 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 57 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 5 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 104 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2370 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 92 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2210 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 814 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 176 | J/m | ASTM D 256 |
| Izod Impact, notched, 23°C, 6.4mm | 160 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 58 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 59 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 16 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 65 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 13 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 130 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 110 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 92 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 120 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 105 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 8.32E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 8.35E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 8.32E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 8.35E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | PASS | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 130 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 131 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 116 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 98 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.22 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.65 - 0.73 | % | S-Plastics Method |
| Melt Flow Rate, 250°C/5.0 kgf | 9.6 | g/10 min | ASTM D 1238 |
| Density | 1.22 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.28 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.08 | % | ISO 62 |
| Melt Volume Rate, MVR at 250°C/5.0 kg | 8 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:10/16/2006 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 275 | °C |
| Nozzle Temperature | 255 - 270 | °C |
| Front - Zone 3 Temperature | 255 - 275 | °C |
| Middle - Zone 2 Temperature | 250 - 270 | °C |
| Rear - Zone 1 Temperature | 245 - 265 | °C |
| Mold Temperature | 65 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 50 - 80 | % |
| Vent Depth | 0.013 - 0.02 | mm |
| Source GMD, last updated:10/16/2006 | ||
