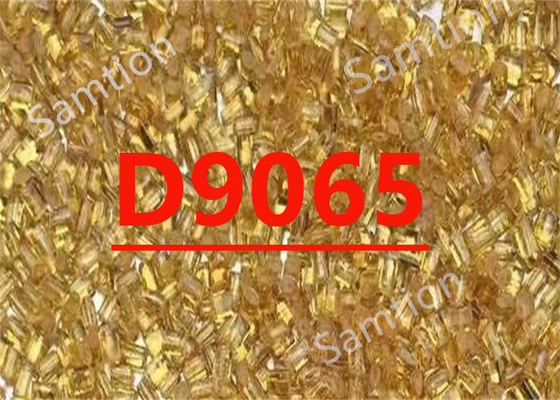

S-Plastics Ultem D9065 resin is Polyimide blend. Meets FAR 25.853 and OSU 65/65 with low toxicity, smoke, and flame evolution. ECO Conforming.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 88 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 88 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 100 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3100 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 124 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3100 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 149 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 96 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 2029 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 67 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -30 | 58 | J | ASTM D 3763 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.32 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 15.6 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| OSU total heat release (2 minute test) | 10 | kW-min/m² | FAR 25.853 |
| OSU peak heat release rate (5 minute test) | 50 | kW/m² | FAR 25.853 |
| Source GMD, last updated:01/13/2000 | |||
| Injection Molding | Value | Unit |
| Drying Temperature | 135 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 340 - 360 | °C |
| Nozzle Temperature | 330 - 355 | °C |
| Front - Zone 3 Temperature | 340 - 360 | °C |
| Middle - Zone 2 Temperature | 325 - 350 | °C |
| Rear - Zone 1 Temperature | 315 - 340 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:01/13/2000 |
|
For more information please download the datasheet |
|
 |
S-Plastics Ultem D9065.pdf |
|
