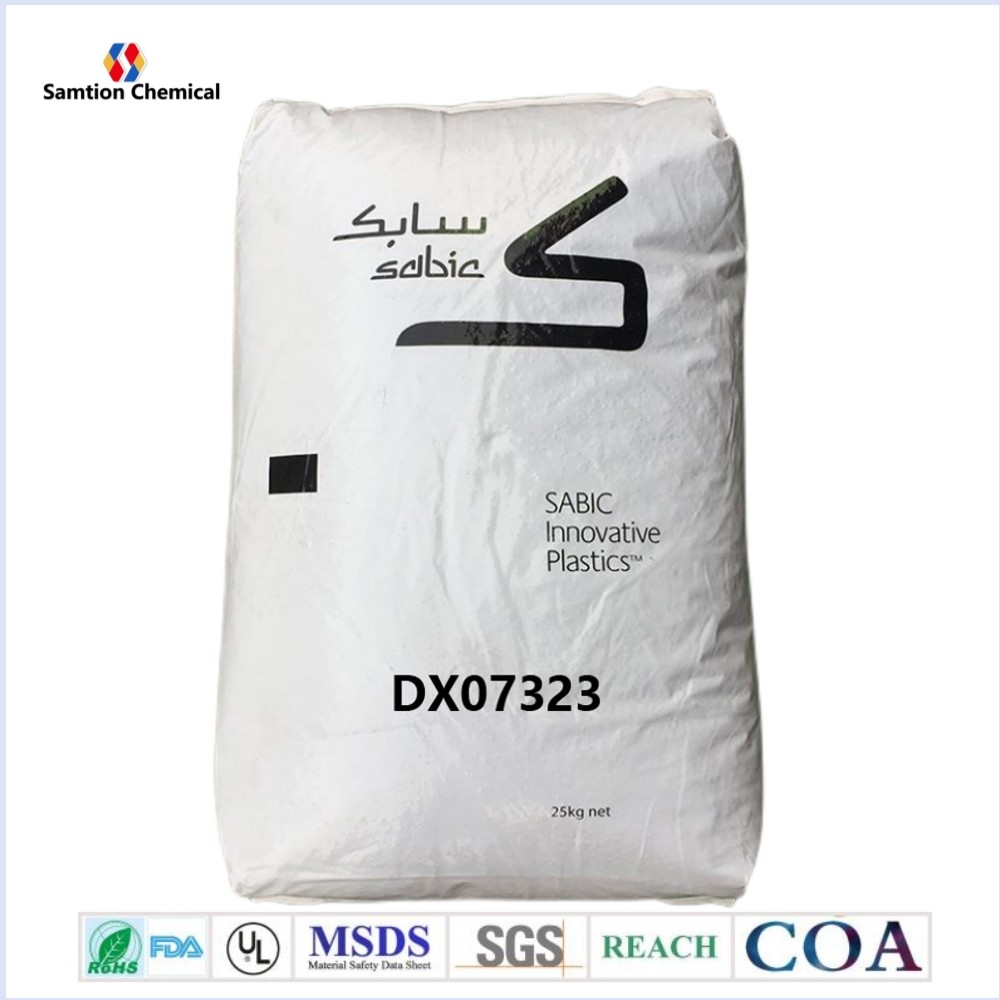

S-Plastics Stat-kon DX07323 resin is a compound based on polycarbonate resin containing conductive fillers. Added features of this compound
includes: ESD safe and excellent low-temperature impact performance, intended for compliance to ATEX.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 45 | MPa | ASTM D 638 |
| Tensile Stress, break | 55 | MPa | ASTM D 638 |
| Tensile Strain, yield | 5 | % | ASTM D 638 |
| Tensile Strain, break | 9 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2400 | MPa | ASTM D 638 |
| Flexural Stress | 84 | MPa | ASTM D 790 |
| Flexural Modulus | 2200 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 55 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 44 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 5 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2400 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 88 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1600 | J/m | ASTM D 4812 |
| Izod Impact, unnotched, -40°C | 1500 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 180 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 100 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 130 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -40°C | 100 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 16 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 10 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 125 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 5.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 5.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 5.E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 124 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.26 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow | 0.5 | % | S-Plastics Method |
| Mold Shrinkage, xflow | 0.5 | % | S-Plastics Method |
| Mold Shrinkage, flow, 24 hrs | 0.4 - 0.7 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.4 - 0.7 | % | ASTM D 955 |
| Melt Flow Rate, 300°C/10 kg | 55 | g/10 min | ASTM D 1238 |
| Density | 1.26 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 300°C/10.0 kg | 50 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+06 - 1.E+10 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 1.E+06 - 1.E+10 | Ohm | ASTM D 257 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 2.5 | mm | UL 94 |
| Source GMD, last updated:04/07/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 290 - 305 | °C |
| Front - Zone 3 Temperature | 290 - 300 | °C |
| Middle - Zone 2 Temperature | 290 - 300 | °C |
| Rear - Zone 1 Temperature | 280 - 295 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:04/07/2008 | ||
