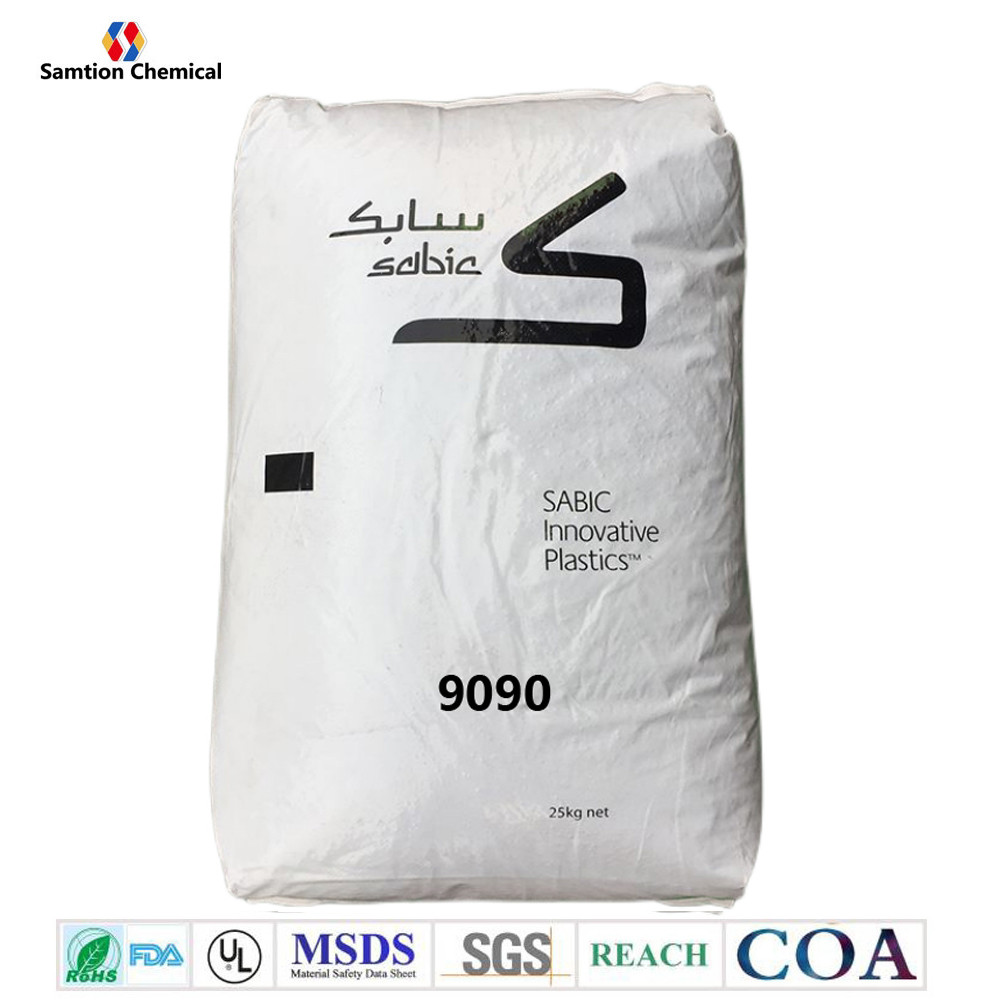

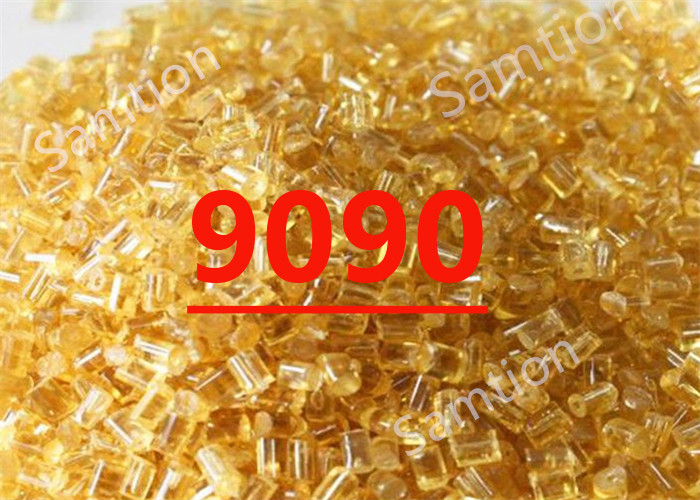

S-Plastics Ultem 9090 resin is Polyimide Blend with improved Ductility and Detergent resistance. Meets FAR 25.853 and OSU 55/55 heat release and provides low toxicity, smoke and flame evolution.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 95 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 90 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 85 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2900 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 140 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3000 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 97 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 80 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 80 | % | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 136 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2800 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 70 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 3300 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 88 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, 0°C | 99 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -20°C | 88 | J | ASTM D 3763 |
| Instrumented Impact Ductility, 23°C | 100 | % | ASTM D 3763 |
| Instrumented Impact Ductility, 0°C | 100 | % | ASTM D 3763 |
| Instrumented Impact Ductility, -20°C | 90 | % | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy Impact, notched, 23°C | 11 | kJ/m² | ISO 179/2C |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 214 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 204 | °C | ASTM D 648 |
| CTE, -20°C to 150°C, flow | 5.6E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, xflow | 5.5E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.19 | W/m-°C | ASTM C 177 |
| CTE, 23°C to 150°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 150°C, xflow | 5.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate A/50 | 219 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 212 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 212 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 205 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 190 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.28 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm (5) | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 10 | g/10 min | ASTM D 1238 |
| Density | 1.28 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 360°C/5.0 kg | 14 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| OSU total heat release (2 minute test) | 15 | kW-min/m² | FAR 25.853 |
| OSU peak heat release rate (5 minute test) | 45 | kW/m² | FAR 25.853 |
| Vertical Burn a (60s) passes at | 1 | sec | FAR 25.853 |
| Oxygen Index (LOI) | 46 | % | ASTM D 2863 |
| NBS Smoke Density, Flaming, Ds 4 min | 0.7 | - | ASTM E 662 |
| Source GMD, last updated:2010/04/13 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 6 - 8 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 355 - 390 | °C |
| Nozzle Temperature | 345 - 390 | °C |
| Front - Zone 3 Temperature | 345 - 390 | °C |
| Middle - Zone 2 Temperature | 335 - 390 | °C |
| Rear - Zone 1 Temperature | 330 - 390 | °C |
| Mold Temperature | 130 - 160 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:2010/04/13 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Ultem 9090.pdf |
|
