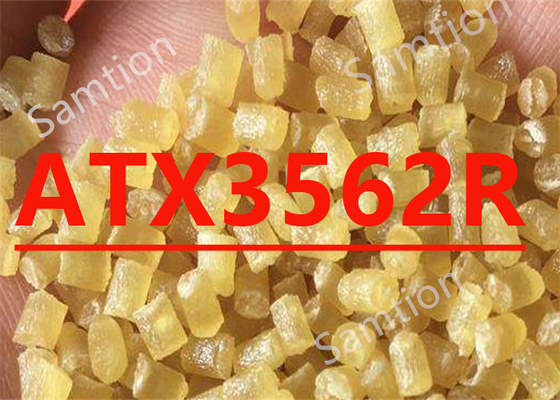

S-Plastics Ultem ATX3562R resin is 50% Glass fiber and mineral filled, high flow Polyimide blend with internal mold release and enhanced dimensional stability. ECO Conforming.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 125 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 125 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.5 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 14940 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 180 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 12900 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 121 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 121 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 14690 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 172 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 13550 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 50 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 49 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 111 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 12 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 5 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 4 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 184 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 183 | °C | ASTM D 648 |
| CTE, -40°C to 150°C, flow | 1.6E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 150°C, xflow | 3.8E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 150°C, flow | 1.6E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 150°C, xflow | 3.8E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | Passes | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 187 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 195 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 195 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 182 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.69 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.2 - 0.3 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 20 | g/10 min | ASTM D 1238 |
| Density | 1.69 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.1 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.04 | % | ISO 62 |
| Melt Volume Rate, MVR at 360°C/5.0 kg | 20 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 6.E+15 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 2.1E+15 | Ohm | ASTM D 257 |
| Source GMD, last updated:10/03/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 135 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 10 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 350 - 370 | °C |
| Nozzle Temperature | 350 - 370 | °C |
| Front - Zone 3 Temperature | 350 - 370 | °C |
| Middle - Zone 2 Temperature | 345 - 365 | °C |
| Rear - Zone 1 Temperature | 340 - 360 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:10/03/2005 | ||
|
