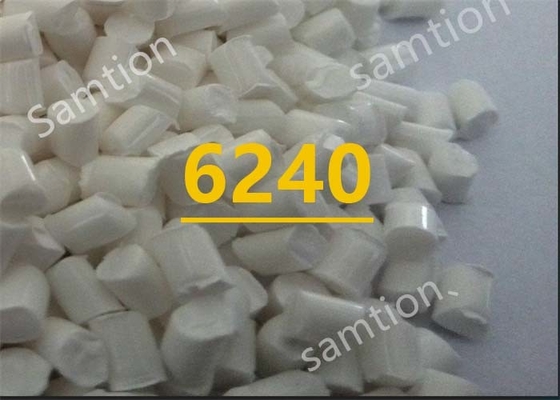

S-Plastics Xenoy 6240 resin is 10% GR, impact modified alloy, improved impact strength and ductility.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 96 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 96 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2750 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 113 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 747 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 186 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 176 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 121 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 5.22E-05 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, flow | 5.22E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 75 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 75 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 75 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.3 | - | ASTM D 792 |
| Specific Volume | 0.76 | cm³/g | ASTM D 792 |
| Water Absorption, 24 hours | 0.11 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.7 - 0.9 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 7.E+15 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 18.8 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 25.1 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 3.2 mm | 18.8 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.4 | - | ASTM D 150 |
| Relative Permittivity, 100 kHz | 3.3 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.3 | - | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.002 | - | ASTM D 150 |
| Dissipation Factor, 100 kHz | 0.02 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.01 | - | ASTM D 150 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 280 | °C |
| Nozzle Temperature | 255 - 275 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 255 - 275 | °C |
| Rear - Zone 1 Temperature | 250 - 270 | °C |
| Mold Temperature | 65 - 95 | °C |
| Back Pressure | 0.3 - 0.6 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 50 - 80 | % |
| Vent Depth | 0.013 - 0.02 | mm |
| Source GMD, last updated:12/29/1999 | ||
