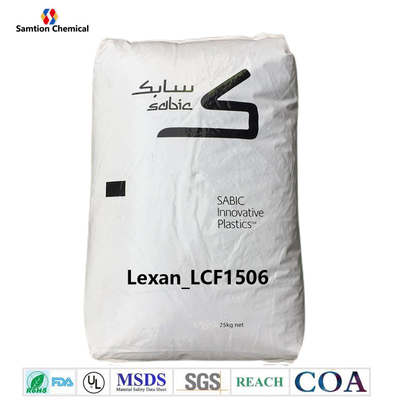

S-Plastics Stat-kon Lexan_LCF1506 resin is a 15% carbon fiber, 6% PTFE reinforced polycarbonate.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 111 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 111 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4.1 | % | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 160 | MPa | ASTM D 790 |
| Flexural Stress, brk, 2.6 mm/min, 100 mm span | 154 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 9080 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 8410 | MPa | ASTM D 790 |
| K-factor xE-10, PV=2000 psi-fpm vs Steel | 1000 | - | S-Plastics Method |
| Coefficient of Friction on steel, Static | 0.41 | - | ASTM D 1894 |
| Coefficient of Friction on steel,Kinetic | 0.19 | - | ASTM D 1894 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 283 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 53 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 11 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 141 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 137 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 144 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 139 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 80 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 80 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 80 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.31 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.05 - 0.15 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.2 - 0.3 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+04 | Ohm | ASTM D 257 |
| Static Decay, 5000V to <50V | 0.01 | < seconds | FTMS101B |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:03/15/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 48 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 290 - 315 | °C |
| Nozzle Temperature | 290 - 315 | °C |
| Front - Zone 3 Temperature | 290 - 315 | °C |
| Middle - Zone 2 Temperature | 280 - 305 | °C |
| Rear - Zone 1 Temperature | 275 - 295 | °C |
| Mold Temperature | 70 - 105 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:03/15/1999 | ||
