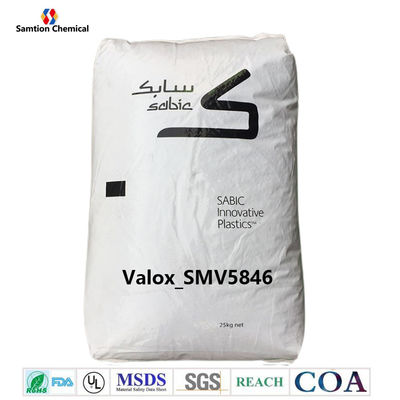

S-Plastics Stat-kon Valox_SMV5846 resin is SINGLE LOT DATA. 20% CFR PBT+PET. ESD APPLICATIONS. High flow, good chemical resistance. Flame retardant additives. Will be
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 128 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 197 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 12200 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 42 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 203 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.46 | - | ASTM D 792 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 7.E+00 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 3.E+03 | Ohm | ASTM D 257 |
| Static Decay, 5000V to <50V | 0.01 | < seconds | FTMS101B |
| Source GMD, last updated:11/03/1999 | |||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 265 | °C |
| Nozzle Temperature | 245 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 265 | °C |
| Middle - Zone 2 Temperature | 245 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 255 | °C |
| Mold Temperature | 65 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:11/03/1999 | ||
