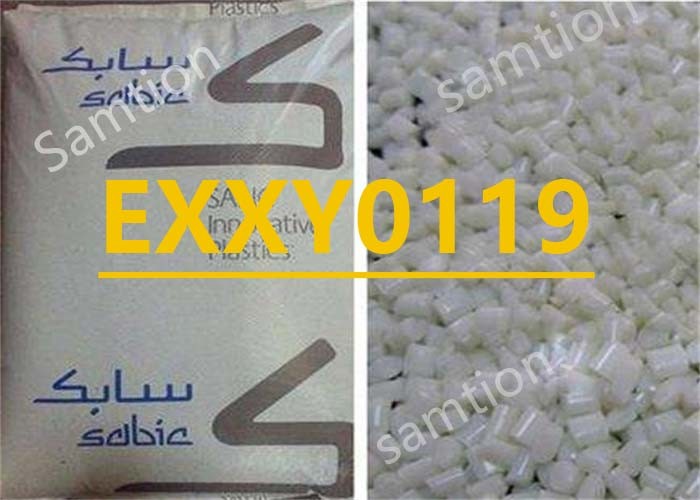

S-Plastics Xenoy EXXY0119 resin is PBT+PC, Flame Retardant, Mold Release, Impact Modified
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 10 mm/min | 51 | MPa | S-Plastics - Japan Method |
| Tensile Stress, brk, Type I, 10 mm/min | 51 | MPa | S-Plastics - Japan Method |
| Tensile Strain, yld, Type I, 10 mm/min | 5 | % | S-Plastics - Japan Method |
| Tensile Strain, brk, Type I, 10 mm/min | 106 | % | S-Plastics - Japan Method |
| Tensile Modulus, 10 mm/min | 2320 | MPa | S-Plastics - Japan Method |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 95 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1850 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 400 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 120 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.37 | - | ASTM D 792 |
| Melt Flow Rate, 250°C/5.0 kgf | 17 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.8 | mm | UL 94 by GE |
| UL Compliant, 94-5VA Rating (3)(4) | 2 | mm | UL 94 by GE |
| Source GMD, last updated:04/26/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 265 | °C |
| Nozzle Temperature | 245 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 265 | °C |
| Middle - Zone 2 Temperature | 245 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 255 | °C |
| Mold Temperature | 50 - 75 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 100 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:04/26/2007 | ||
