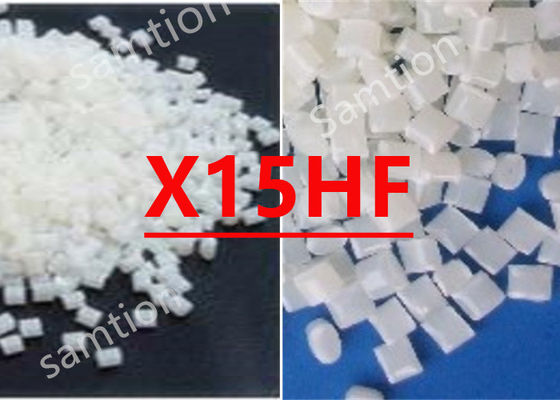

S-Plastics Cycolac X15HF resin is Automotive: Very high heat resistance with excellent processability. High gloss.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 20 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2200 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 81 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2480 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 267 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 107 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 93 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 110 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 100 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.05 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 5 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 230°C/3.8 kgf | 1.5 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 260°C, 1000 sec-1 | 2250 | poise | ASTM D 3825 |
| Spiral Flow,260°C,10 ips,3.175 X 1524 mm | 589.2 | mm | - |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 95 - 100 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 245 - 275 | °C |
| Nozzle Temperature | 245 - 275 | °C |
| Front - Zone 3 Temperature | 245 - 255 | °C |
| Middle - Zone 2 Temperature | 225 - 240 | °C |
| Rear - Zone 1 Temperature | 200 - 210 | °C |
| Mold Temperature | 50 - 80 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:12/29/1999 | ||
