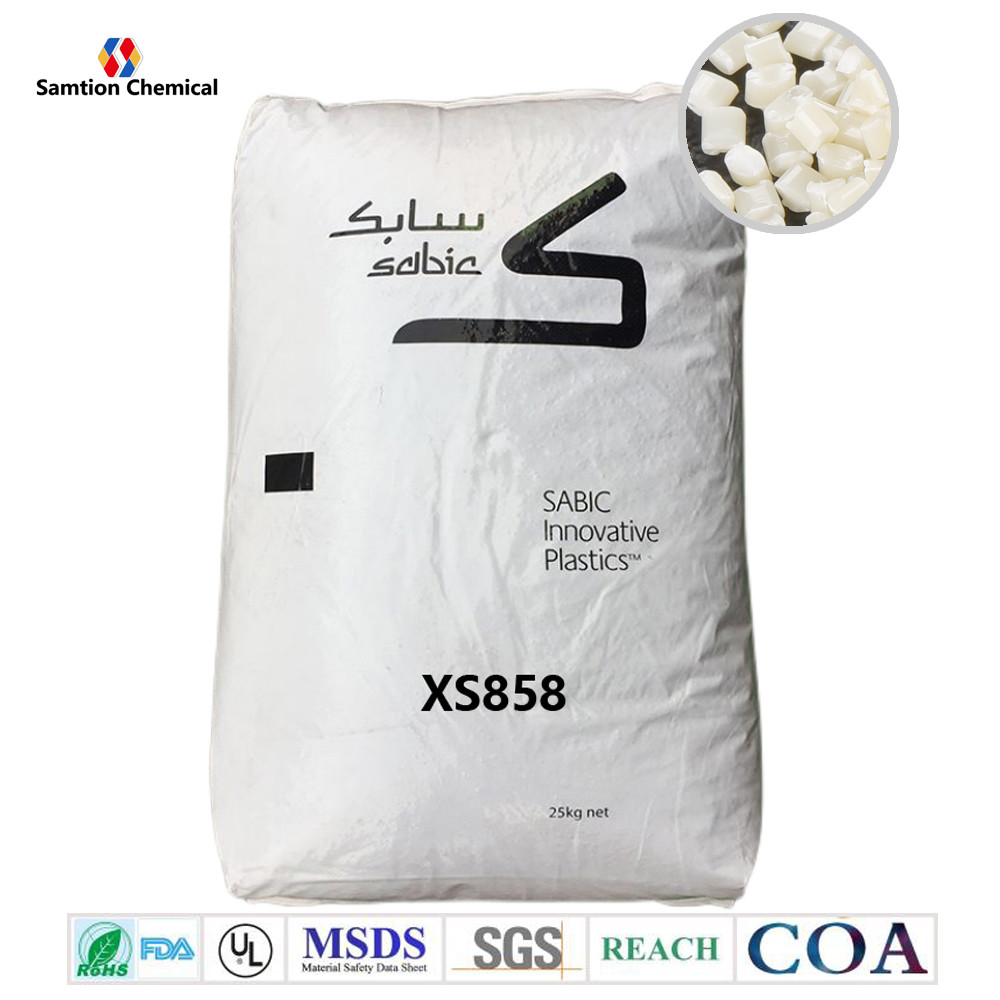

S-Plastics Cycolac XS858 resin is an extrusion / blow moulding grade with very good impact, high heat resistance, high rigidity and an excellent melt strength.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 50 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 40 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 2.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 13 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2400 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 70 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 2500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 24 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 9 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 21 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 9 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Thermal Conductivity | 0.2 | W/m-°C | ISO 8302 |
| Vicat Softening Temp, Rate B/120 | 110 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 104 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 93 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage on Tensile Bar, xflow (2) | 0.5 - 0.7 | % | S-Plastics Method |
| Density | 1.05 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 1 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 2 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+15 | Ohm | IEC 60093 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 1.6 | mm | UL 94 by GE |
| Source GMD, last updated:04/19/1996 | |||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Melt Temperature | 210 - 250 | °C |
| Barrel - Zone 1 Temperature | 205 - 230 | °C |
| Barrel - Zone 2 Temperature | 210 - 240 | °C |
| Barrel - Zone 3 Temperature | 220 - 250 | °C |
| Barrel - Zone 4 Temperature | 220 - 250 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Adapter Temperature | 220 - 250 | °C |
| Die Temperature | 210 - 240 | °C |
| Calibrator Temperature | 60 - 80 | °C |
| Source GMD, last updated:04/19/1996 | ||
