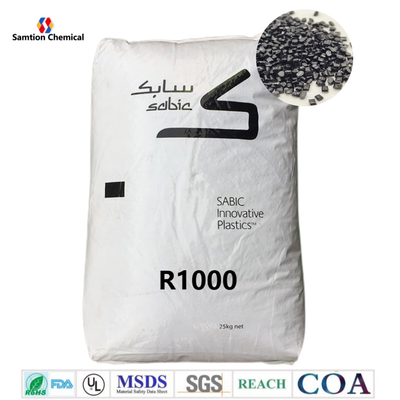

S-Plastics Colorcomp R1000 resin is an unfilled Nylon 6/6.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 79 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 11 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 45 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2990 | MPa | ISO 527 |
| Flexural Stress | 33 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2900 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 140 | kJ/m² | ISO 180/1A |
| Charpy Impact, notched, 23°C | 165 | kJ/m² | ISO 179/2C |
| Charpy Impact, notched, -30°C | 139 | kJ/m² | ISO 179/2C |
| THERMAL | Value | Unit | Standard |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 200 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 70 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow (5) | 1.2 | % | S-Plastics Method |
| Mold Shrinkage, xflow (5) | 1.4 | % | S-Plastics Method |
| Density | 1.14 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2010/07/26 | |||
|
For more information please download the datesheet |
|
 |
S-Plastics Colorcomp R1000.pdf |
|
