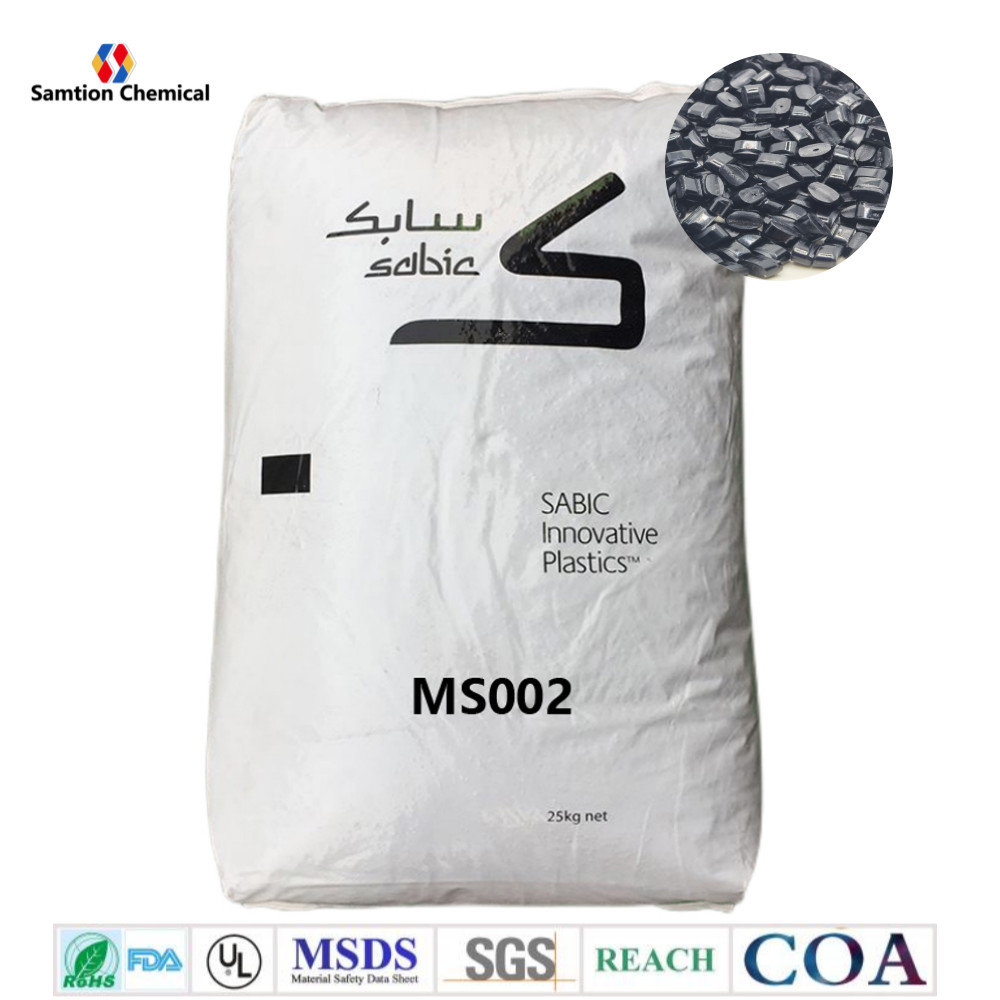

S-Plastics Faradex MS002 resin is a compound based on Polypropylene resin containing Stainless Steel. Added features of this material include:Electrically Conductive, EMI/RFI Shielding.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 19 | MPa | ISO 527 |
| Tensile Stress, break | 15 | MPa | ISO 527 |
| Tensile Strain, yield | 6.1 | % | ISO 527 |
| Tensile Strain, break | 70 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1200 | MPa | ISO 527 |
| Flexural Stress | 31 | MPa | ISO 178 |
| Flexural Modulus | 1400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 100 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 25 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 1.16E-04 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.56E-04 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 56 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 0.97 | g/cm³ | ASTM D 792 |
| Density | 0.97 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+01 - 1.E+03 | Ohm | ASTM D 257 |
| Shielding Effectivness @ 3mm | 40 - 55 | dB | S-Plastics Method |
| Source GMD, last updated:10/05/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 230 - 250 | °C |
| Front - Zone 3 Temperature | 260 - 270 | °C |
| Middle - Zone 2 Temperature | 230 - 245 | °C |
| Rear - Zone 1 Temperature | 205 - 215 | °C |
| Mold Temperature | 30 - 55 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 25 - 50 | rpm |
| Source GMD, last updated:10/05/2004 | ||
