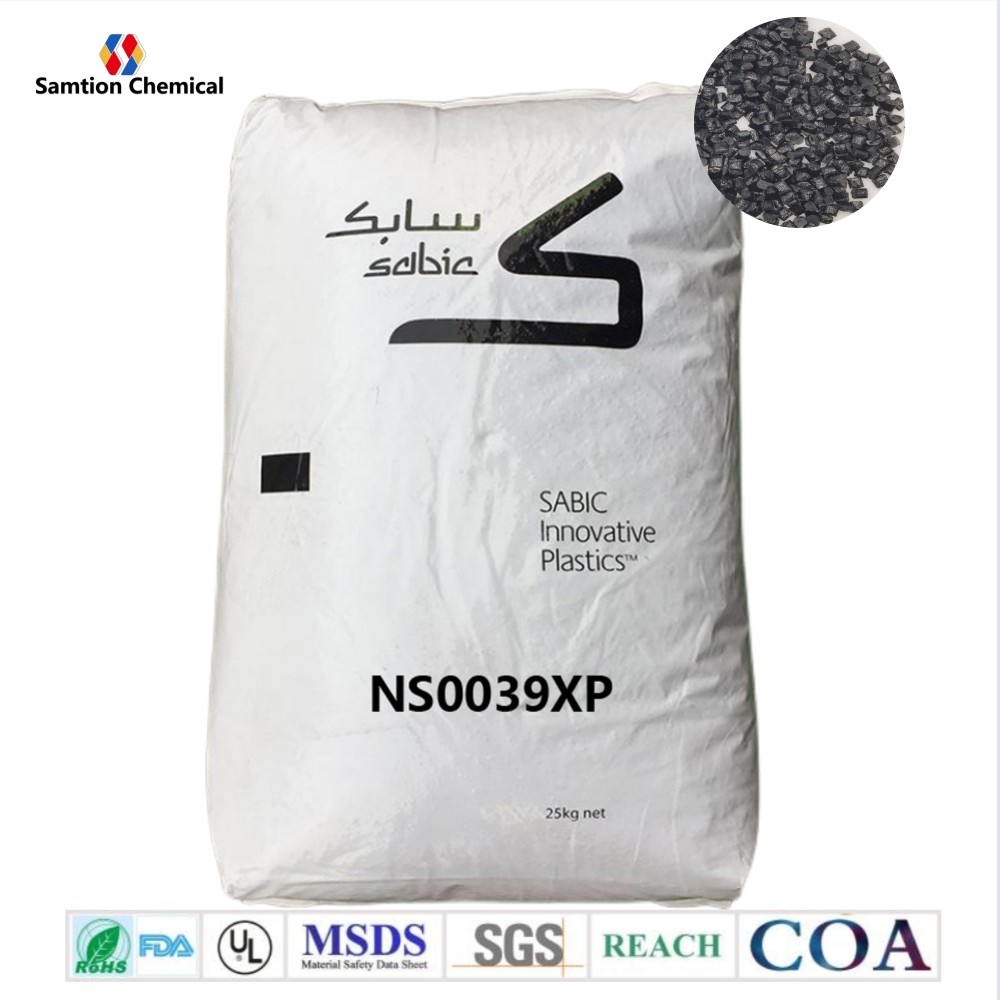

S-Plastics Faradex NS0039XP resin is a compound based on PC/ABS resin containing Stainless Steel Fiber, Flame Retardant. Added features
include: Electrically Conductive, EMI/RFI Shielding, Flame retardant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 67 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 65 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 3 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3600 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 110 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 91 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 3200 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 25 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 6.5E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 7.3E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 111 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 101 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow (5) | 0.3 - 0.5 | % | S-Plastics Method |
| Density | 1.38 | g/cm³ | ISO 1183 |
| Water Absorption, 23°C/24hrs | 0.11 | % | ISO 62-1 |
| ELECTRICAL | Value | Unit | Standard |
| Shielding Effectivness @ 3mm | 50 - 65 | dB | S-Plastics Method |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 0.8 | mm | UL 94 |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 3 | mm | UL 94 |
| Source GMD, last updated:2010/09/07 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 85 - 100 | °C |
| Drying Time | 6 - 8 | hrs |
| Melt Temperature | 240 - 270 | °C |
| Nozzle Temperature | 240 - 270 | °C |
| Front - Zone 3 Temperature | 240 - 260 | °C |
| Middle - Zone 2 Temperature | 240 - 250 | °C |
| Rear - Zone 1 Temperature | 240 - 250 | °C |
| Mold Temperature | 60 - 100 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Source GMD, last updated:2010/09/07 | ||
