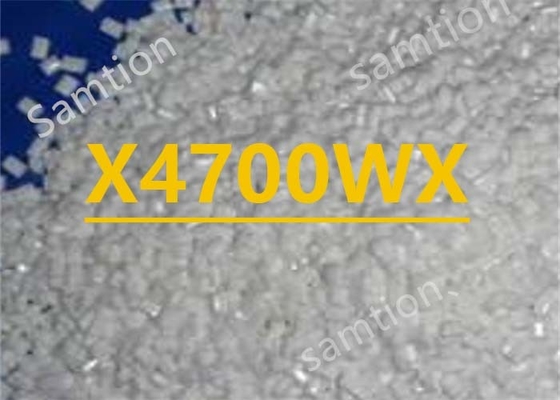

S-Plastics Xenoy X4700WX resin is resin is specially designed for extrusion (blow molding) applications, where higher melt strength is desired. XENOY X4700WX is a high impact material combined with good UV resistance performance. This grade is similar to Xenoy X4700 resin with
improved UV-performance.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 50 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 45 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 100 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2000 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 65 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1900 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 50 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 30 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -20°C | 15 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | n.a. | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 40 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Thermal Conductivity | 0.21 | W/m-°C | ISO 8302 |
| CTE, 23°C to 80°C, flow | 1.05E-04 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 1.05E-04 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 120 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 125 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 105 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 87 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.22 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.5 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Flow Rate, 250°C/5.0 kg | 8 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 250°C/5.0 kg | 7 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:03/04/2005 | |||
| Parameter | ||
| Extrusion Blow Molding | Value | Unit |
| Drying Temperature | 110 - 120 | °C |
| Drying Time | 2 - 4 | hrs |
| Melt Temperature (Parison) | 225 - 240 | °C |
| Hopper Temperature | 40 - 60 | °C |
| Barrel - Zone 1 Temperature | 225 - 240 | °C |
| Barrel - Zone 2 Temperature | 225 - 240 | °C |
| Barrel - Zone 3 Temperature | 230 - 250 | °C |
| Accumulator Temperature | 220 - 240 | °C |
| Mold Temperature | 60 - 80 | °C |
| Die Temperature | 225 - 240 | °C |
| Source GMD, last updated:03/04/2005 | ||
