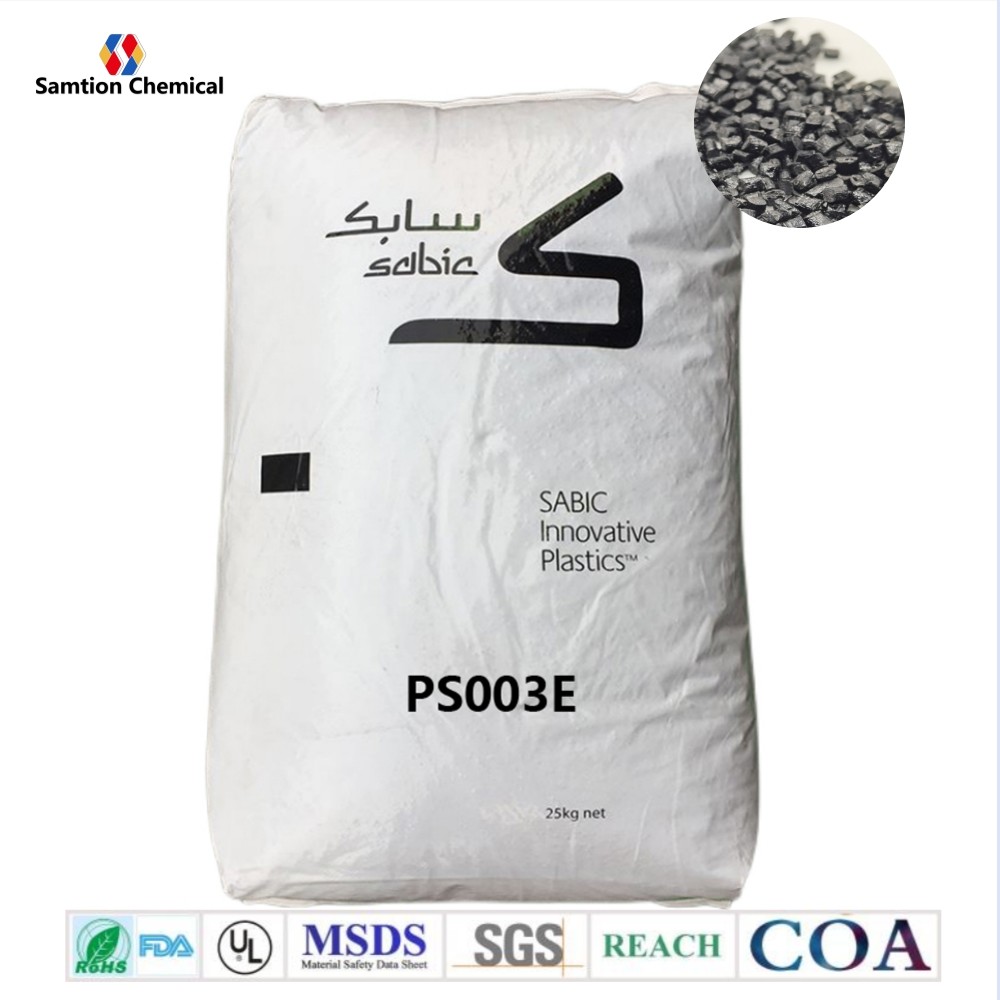

S-Plastics Faradex PS003E resin is a compound based on Nylon 6 resin containing Stainless Steel. Added features of this material include:Electrically Conductive, EMI/RFI Shielding.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 55 | MPa | ASTM D 638 |
| Tensile Stress, break | 55 | MPa | ASTM D 638 |
| Tensile Strain, yield | 9.6 | % | ASTM D 638 |
| Tensile Strain, break | 23 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 3150 | MPa | ASTM D 638 |
| Flexural Stress | 82 | MPa | ASTM D 790 |
| Flexural Modulus | 2310 | MPa | ASTM D 790 |
| Tensile Stress, yield | 53 | MPa | ISO 527 |
| Tensile Stress, break | 53 | MPa | ISO 527 |
| Tensile Strain, yield | 3.3 | % | ISO 527 |
| Tensile Strain, break | 8.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3000 | MPa | ISO 527 |
| Flexural Stress | 81 | MPa | ISO 178 |
| Flexural Modulus | 2400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 389 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 42 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 2 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 43 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 186 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 62 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.02E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.56E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 3.95E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 4.28E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 171 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 58 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.22 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 1.3 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 72 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 100 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.72 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1 | % | ISO 294 |
| Density | 1.22 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | - 1.E+04 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | - 1.E+03 | Ohm | ASTM D 257 |
| Source GMD, last updated:12/20/2006 | |||
