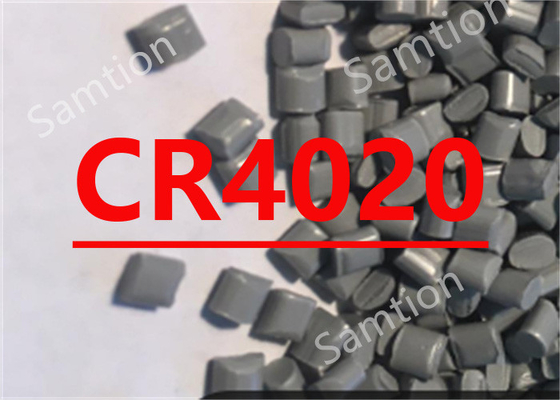

S-Plastics Geloy CR4020 resin is Low gloss ASA, primarily for capstock over PVC and ABS.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 41 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 31 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 24 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2060 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 62 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2060 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 95 | - | ASTM D 785 |
| Tensile Stress, yield, 50 mm/min | 40 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 57 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 288 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 99 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 87 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 78 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 8.64E+00 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 9.18E+00 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.07 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 7 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:09/10/2002 | |||
| Processing | ||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 3 - 6 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Minimum Moisture Content | 0.02 | % |
| Melt Temperature | 225 - 255 | °C |
| Barrel - Zone 1 Temperature | 205 - 215 | °C |
| Barrel - Zone 2 Temperature | 215 - 230 | °C |
| Barrel - Zone 3 Temperature | 220 - 240 | °C |
| Barrel - Zone 4 Temperature | 225 - 245 | °C |
| Adapter Temperature | 225 - 245 | °C |
| Die Temperature | 225 - 245 | °C |
| Calibrator Temperature | 15 - 65 | °C |
| Source GMD, last updated:09/10/2002 |
