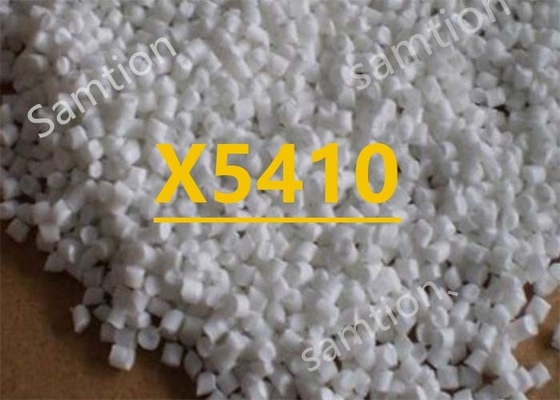

S-Plastics Xenoy X5410 resin is Mineral filled PC+PET resin with high heat dimensional stability for paint systems. It has very low CTE and excellent flow - impact balance for automotive exterior applications, like body panels, tailgates, spoilers, rockerpanels or tankflaps
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 56 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 45 | MPa | ASTM D 638 |
| Tensile Stress, yld, Type I, 10 mm/min | 56 | MPa | S-Plastics - Japan Method |
| Tensile Stress, brk, Type I, 10 mm/min | 45 | MPa | S-Plastics - Japan Method |
| Tensile Strain, yld, Type I, 5 mm/min | 4.2 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 38.7 | % | ASTM D 638 |
| Tensile Strain, yld, Type I, 10 mm/min | 67 | % | S-Plastics - Japan Method |
| Tensile Strain, brk, Type I, 10 mm/min | 100 | % | S-Plastics - Japan Method |
| Tensile Modulus, 5 mm/min | 3230 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 92 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2990 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 55 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 26 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 4.1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 12.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3190 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 93 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2700 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 87 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 82 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 54 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 9 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 137 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 109 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 134 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 121 | °C | ASTM D 648 |
| CTE, -40°C to 60°C, flow | 5.86E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 60°C, xflow | 7.05E-05 | 1/°C | ASTM E 831 |
| CTE, -30°C to 80°C, flow | 5.81E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 7.01E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | Pass | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 137 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 140 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 128 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 105 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.27 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.65 - 0.75 | % | S-Plastics Method |
| Melt Flow Rate, 250°C/2.16 kgf | 0.2 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 265°C/2.16kg | 19 | g/10 min | ASTM D 1238 |
| Density | 1.26 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.42 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.14 | % | ISO 62 |
| Melt Flow Rate, 250°C/2.16 kg | 0 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 250°C/2.16 kg | 0 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 17 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:06/28/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 275 | °C |
| Nozzle Temperature | 255 - 270 | °C |
| Front - Zone 3 Temperature | 255 - 275 | °C |
| Middle - Zone 2 Temperature | 250 - 270 | °C |
| Rear - Zone 1 Temperature | 245 - 265 | °C |
| Mold Temperature | 65 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 50 - 80 | % |
| Vent Depth | 0.013 - 0.02 | mm |
| Source GMD, last updated:06/28/2005 | ||
