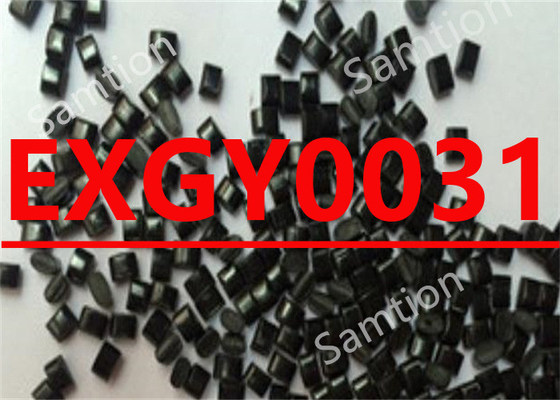

S-Plastics Geloy EXGY0031 resin is ASA copolymer. Profile/sheet coextrusion over PVC or ABS. Excellent weatherability, good flow/aesthetics and good impact.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 38 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 30 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1800 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 53 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1870 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 13 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/120 | 78 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 70 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.09 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 16 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:09/03/2004 | |||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 210 - 240 | °C |
| Barrel - Zone 1 Temperature | 180 - 210 | °C |
| Barrel - Zone 2 Temperature | 190 - 220 | °C |
| Barrel - Zone 3 Temperature | 200 - 230 | °C |
| Barrel - Zone 4 Temperature | 200 - 230 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Adapter Temperature | 200 - 230 | °C |
| Die Temperature | 200 - 230 | °C |
| Calibrator Temperature | 50 - 70 | °C |
| Source GMD, last updated:09/03/2004 | ||
