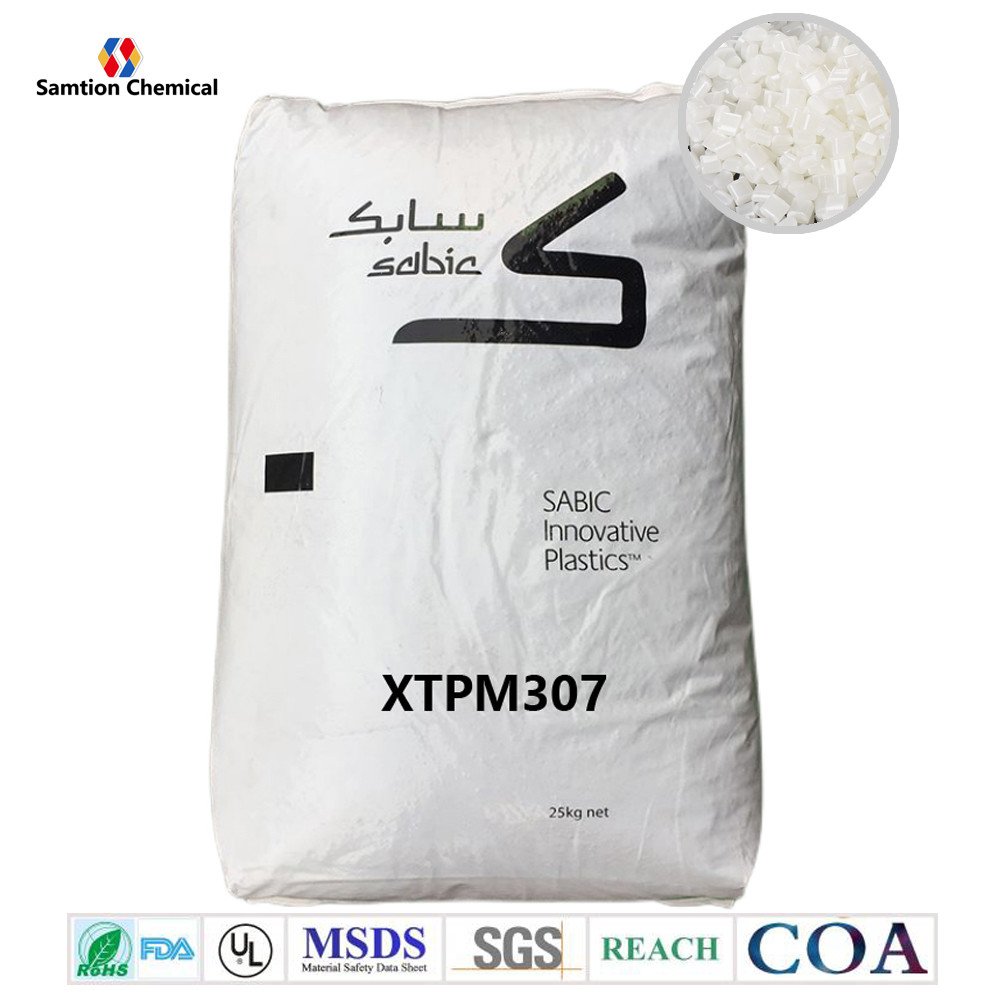

S-Plastics Geloy XTPM307 resin is a high heat resistant PC/ASA with improved processing stability over HRA150. Typical values measured on natural material.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 57 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 64 | MPa | ASTM D 638 |
| Tensile Stress, yld, Type I, 5 mm/min | 53 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4.8 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | >100 | % | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 4.8 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | >100 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2280 | MPa | ASTM D 638 |
| Tensile Stress, yield, 5 mm/min | 53 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 60 | MPa | ISO 527 |
| Tensile Stress, yield, 50 mm/min | 58 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 60 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 4.7 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | >100 | % | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | >100 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2350 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 84 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2210 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 640 | J/m | ASTM D 256 |
| Izod Impact, notched, 0°C | 595 | J/m | ASTM D 256 |
| Izod Impact, notched, -10°C | 245 | J/m | ASTM D 256 |
| Izod Impact, notched, -20°C | 205 | J/m | ASTM D 256 |
| Multiaxial Impact | 120 | J | ISO 6603 |
| Izod Impact, notched 80*10*4 +23°C | 59 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 0°C | 46 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 26 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -20°C | 20 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 17 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 8.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Ball Pressure Test, approximate maximum | 105 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate A/50 | 138 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 116 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 118 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 125 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 103 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.15 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.6 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 5 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 240°C/5.0 kg | 6 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 16 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 260°C/10 kg | 50 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 4.2E+15 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 1.5E+16 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 1.6 mm | 27.5 | kV/mm | ASTM D 149 |
| Dissipation Factor, 1 MHz | 0.0153 | - | ASTM D 150 |
| Source GMD, last updated:01/05/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 100 - 110 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 290 | °C |
| Nozzle Temperature | 240 - 280 | °C |
| Front - Zone 3 Temperature | 250 - 290 | °C |
| Middle - Zone 2 Temperature | 250 - 290 | °C |
| Rear - Zone 1 Temperature | 230 - 260 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 60 - 90 | °C |
| Source GMD, last updated:01/05/2005 | ||
