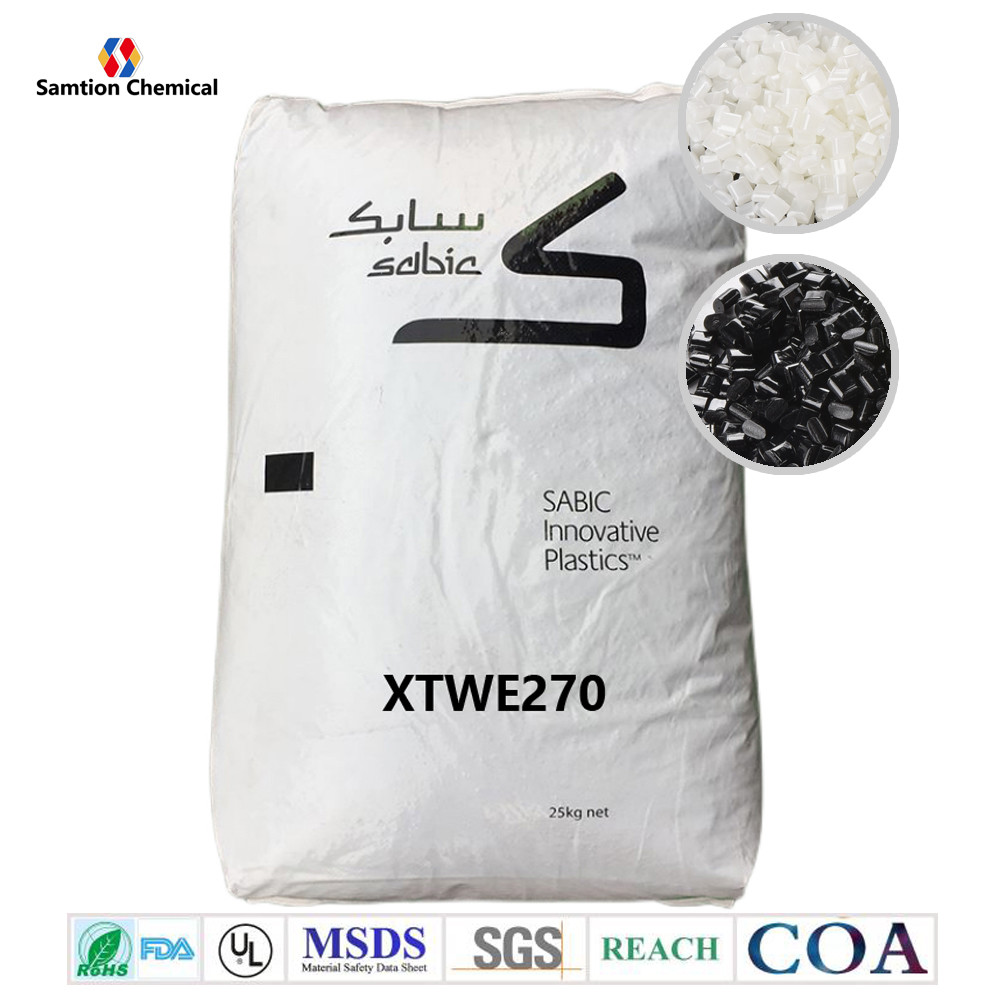

S-Plastics Geloy XTWE270 resin is ASA copolymer. Profile/sheet coextrusion over PVC or ABS. Excellent weatherability, good flow/aesthetics and good impact.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 39 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 30 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 39 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1790 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 56 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1940 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 39 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 31 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1950 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 55 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1850 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 165 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | - | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 37 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 17 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 16 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 81 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 72 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.16E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.27E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.17E-04 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.34E-04 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | - | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 82 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 84 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 77 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.1 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.2 - 0.5 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 13.1 | g/10 min | ASTM D 1238 |
| Density | 1.09 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 1.19 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.26 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 13 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:02/22/2005 | |||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 190 - 210 | °C |
| Barrel - Zone 1 Temperature | 180 - 200 | °C |
| Barrel - Zone 2 Temperature | 180 - 200 | °C |
| Barrel - Zone 3 Temperature | 180 - 205 | °C |
| Barrel - Zone 4 Temperature | 180 - 205 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Adapter Temperature | 180 - 205 | °C |
| Die Temperature | 185 - 205 | °C |
| Calibrator Temperature | 50 - 70 | °C |
| Source GMD, last updated:02/22/2005 | ||
