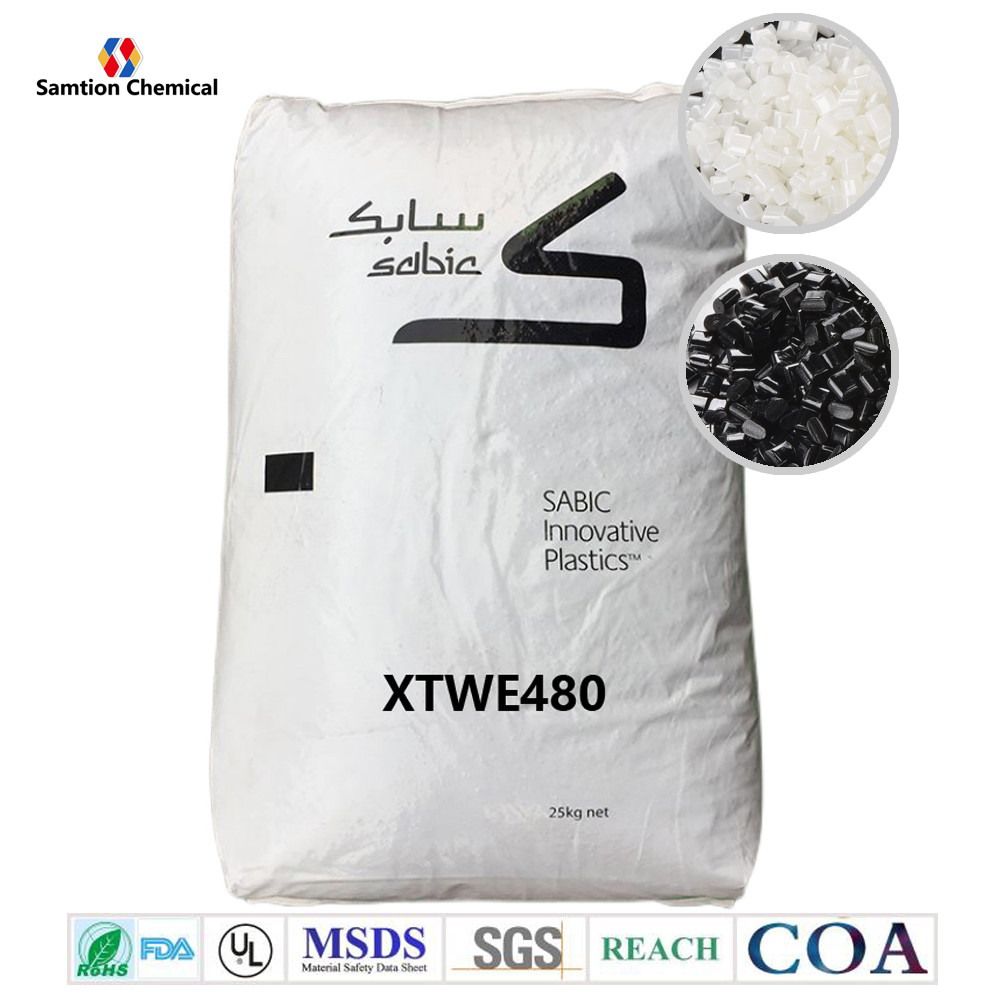

S-Plastics Geloy XTWE480 resin is Anti-scratch Geloy grade with excellent weatherability, high flow, and good surface quality. XTWE480 is available in various colours.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 50 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 36 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 21 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2470 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 70 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2060 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 50 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 38 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 25 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2300 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 70 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2410 | MPa | ISO 178 |
| Pencil Hardness test, 1kgf | F | - | ASTM D 3363 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 49 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 27 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 6 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 3 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 78 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 73 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 8.1E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 8.8E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 79 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 73 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.15 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 38 | g/10 min | ASTM D 1238 |
| Density | 1.15 | g/cm³ | ISO 1183 |
| Source GMD, last updated:07/28/2008 | |||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 75 - 85 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 200 - 230 | °C |
| Barrel - Zone 1 Temperature | 205 - 220 | °C |
| Barrel - Zone 2 Temperature | 210 - 225 | °C |
| Barrel - Zone 3 Temperature | 215 - 225 | °C |
| Barrel - Zone 4 Temperature | 215 - 225 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Adapter Temperature | 200 - 225 | °C |
| Die Temperature | 210 - 225 | °C |
| Calibrator Temperature | 50 - 70 | °C |
| Source GMD, last updated:07/28/2008 | ||
|
For more information please download the datesheet |
|
 |
S-Plastics Geloy XTWE480.pdf |
|
