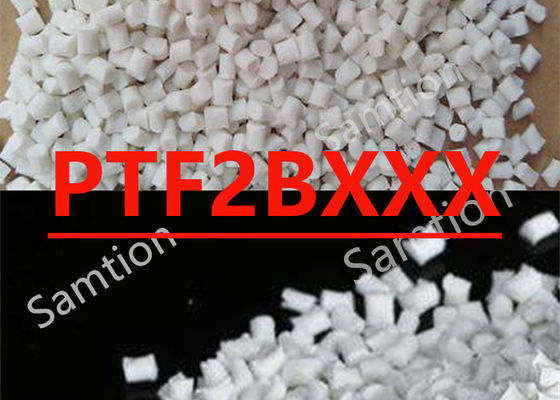

S-Plastics Verton PTF2BXXX resin is a compound based on Nylon 6 resin containing Glass Fiber, Proprietary Thermal Filler. Added features of
this material include: Thermally Conductive.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 88 | MPa | ASTM D 638 |
| Tensile Strain, break | 2.4 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10750 | MPa | ASTM D 638 |
| Flexural Stress | 168 | MPa | ASTM D 790 |
| Flexural Modulus | 10610 | MPa | ASTM D 790 |
| Tensile Stress, break | 81 | MPa | ISO 527 |
| Tensile Strain, break | 2.8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10160 | MPa | ISO 527 |
| Flexural Stress | 151 | MPa | ISO 178 |
| Flexural Modulus | 9650 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 144 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 32 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 11 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 33 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 174 | °C | ASTM D 648 |
| Thermal Conductivity | 1.1 | W/m-°C | ASTM E 1530 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 174 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Moisture Absorption, 50% RH, 24 hrs | 0.4 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.7 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 1.2 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.72 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1.18 | % | ISO 294 |
| Wear Factor Washer | 1074 | 10^-10 in^5-min/ft-lb-hr | ASTM D 3702 Modified |
| Dynamic COF | 0.48 | - | ASTM D 3702 Modified |
| Static COF | 0.39 | - | ASTM D 3702 Modified |
| Source GMD, last updated:10/04/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 265 - 275 | °C |
| Front - Zone 3 Temperature | 275 - 290 | °C |
| Middle - Zone 2 Temperature | 265 - 275 | °C |
| Rear - Zone 1 Temperature | 250 - 260 | °C |
| Mold Temperature | 80 - 95 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/04/2004 | ||
