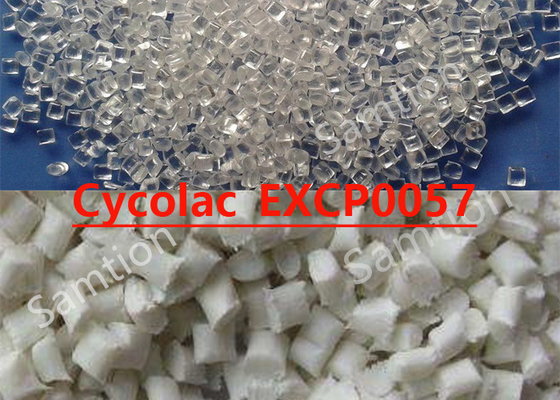

S-Plastics Verton Cycolac_EXCP0057 resin is SINGLE LOT DATA. ECO conforming, antistatic, transparent ABS. Improved impact. Anti-dust applications like vacuum cups, etc.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 38 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 94.4 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 65 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2250 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 181 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 3 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 68 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.09 | - | ASTM D 792 |
| Melt Flow Rate, 230°C/3.8 kgf | 10.1 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 3.E+14 | Ohm | ASTM D 257 |
| Source GMD, last updated:08/13/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 70 - 75 | °C |
| Drying Time | 2 - 8 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 220 - 240 | °C |
| Nozzle Temperature | 220 - 240 | °C |
| Front - Zone 3 Temperature | 215 - 225 | °C |
| Middle - Zone 2 Temperature | 205 - 220 | °C |
| Rear - Zone 1 Temperature | 190 - 210 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:08/13/2001 | ||
