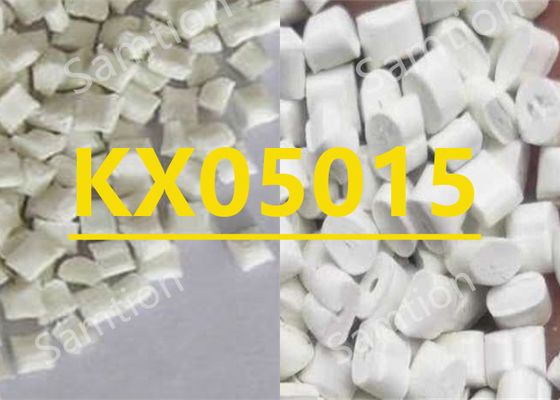

S-Plastics Verton KX05015 resin is a compound based on Acetal Copolymer resin containing Antistat. Added features include permanent Anti-Static.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 43 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 18.7 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1400 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 48 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 10 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 1.57E-04 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 1.6E-04 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 124 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 62 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow | 2.8 | % | S-Plastics Method |
| Density | 1.33 | g/cm³ | ISO 1183 |
| Water Absorption, 23°C/24hrs | 7.9 | % | ISO 62-1 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+10 - 1.E+12 | Ohm | ASTM D 257 |
| Source GMD, last updated:01/31/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 195 - 205 | °C |
| Front - Zone 3 Temperature | 200 - 210 | °C |
| Middle - Zone 2 Temperature | 190 - 200 | °C |
| Rear - Zone 1 Temperature | 175 - 190 | °C |
| Mold Temperature | 70 - 95 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:01/31/2008 | ||
