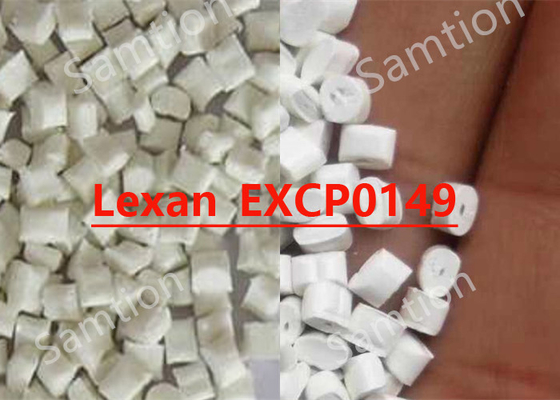

S-Plastics Verton Lexan_EXCP0149 resin is PRELIMINARY DATA. Nonbrominated, nonchlorinated flame retardant, antistatic PC.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 63 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 52 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 46 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 98 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2520 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 683 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 53 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 95 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.18 | - | ASTM D 792 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 2.E+13 | Ohm | ASTM D 257 |
| Source GMD, last updated:12/03/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 80 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 225 - 260 | °C |
| Nozzle Temperature | 225 - 260 | °C |
| Front - Zone 3 Temperature | 225 - 260 | °C |
| Middle - Zone 2 Temperature | 220 - 250 | °C |
| Rear - Zone 1 Temperature | 210 - 240 | °C |
| Mold Temperature | 60 - 80 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:12/03/2001 | ||
